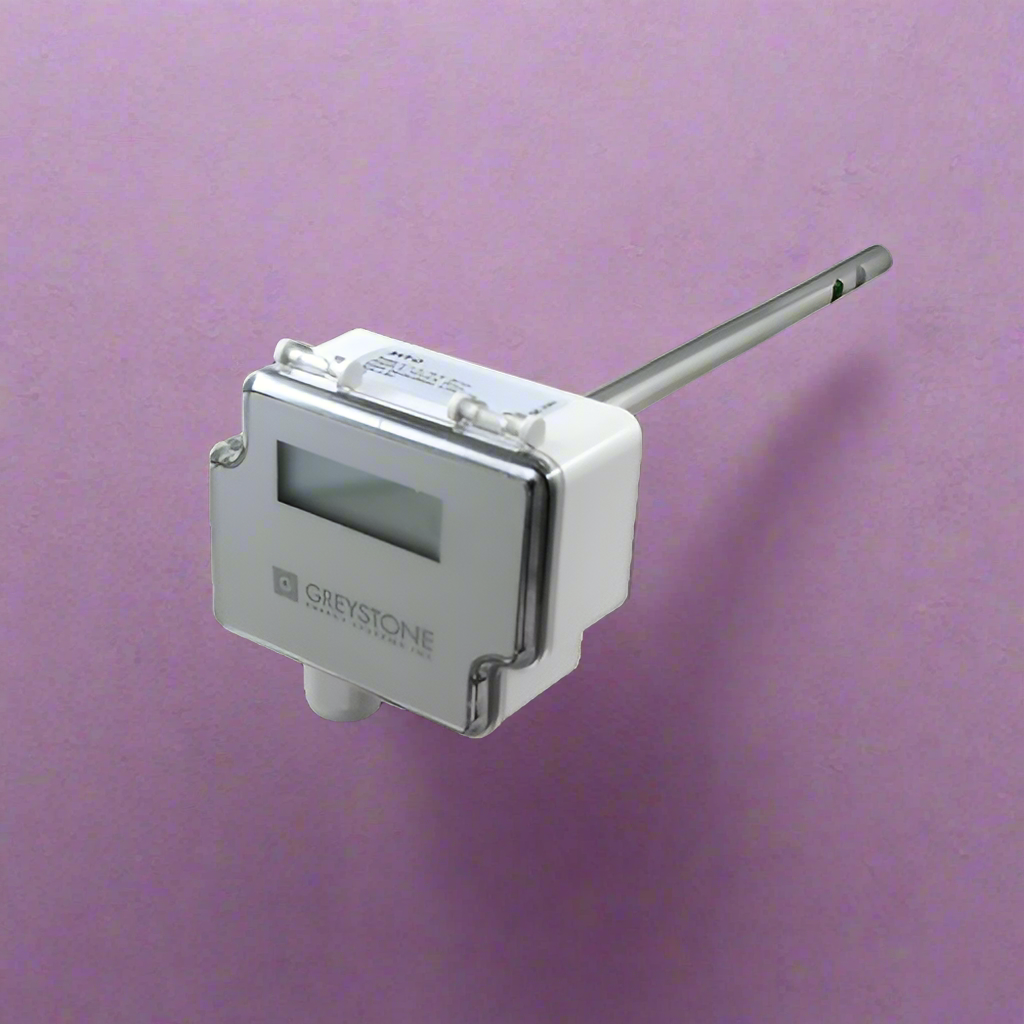

Greystone AVDTMR Air Velocity Transmitter, Display, Relay, 200 mm Probe

Greystone AVDTMR Air Velocity Transmitter, Display, Relay, 200 mm Probe

Regular price $310.46 USD
Regular price Sale price $310.46 USD
Sale
Shipping calculated at checkout.

Greystone AVDTMR measures duct air velocity and temperature for HVAC building automation. This model has a 200 mm 304 stainless-steel probe with an adjustable mounting collar; probe immersion length is adjustable from 50-180 mm. It is suitable for dry air or non-aggressive gases.

The configuration includes a backlit LCD with selectable metric or imperial units and provides separate air velocity and temperature analog outputs supporting 0-10 Vdc or 4-20 mA signals. An adjustable potential-free SPDT relay is included, with NC, COM and NO contacts rated 6 A at 230 Vac or 30 Vdc. The LCD is required to configure the switching point and hysteresis.

Selectable velocity ranges are 0-2, 0-10 or 0-20 m/s. Display models use imperial scales of 0-400, 0-2000 or 0-4000 fpm. The probe temperature range is -25 to 50 C (-13 to 122 F), distinct from the enclosure operating range of 0-50 C (32-122 F) and 0-95% RH, non-condensing.

Power supply is 24 Vdc or 24 Vac +/-10%. Mount in an accessible straight section of duct at least five feet from corners or other airflow disturbances. Position the end of the probe near the middle of the duct and secure the mounting flange.
