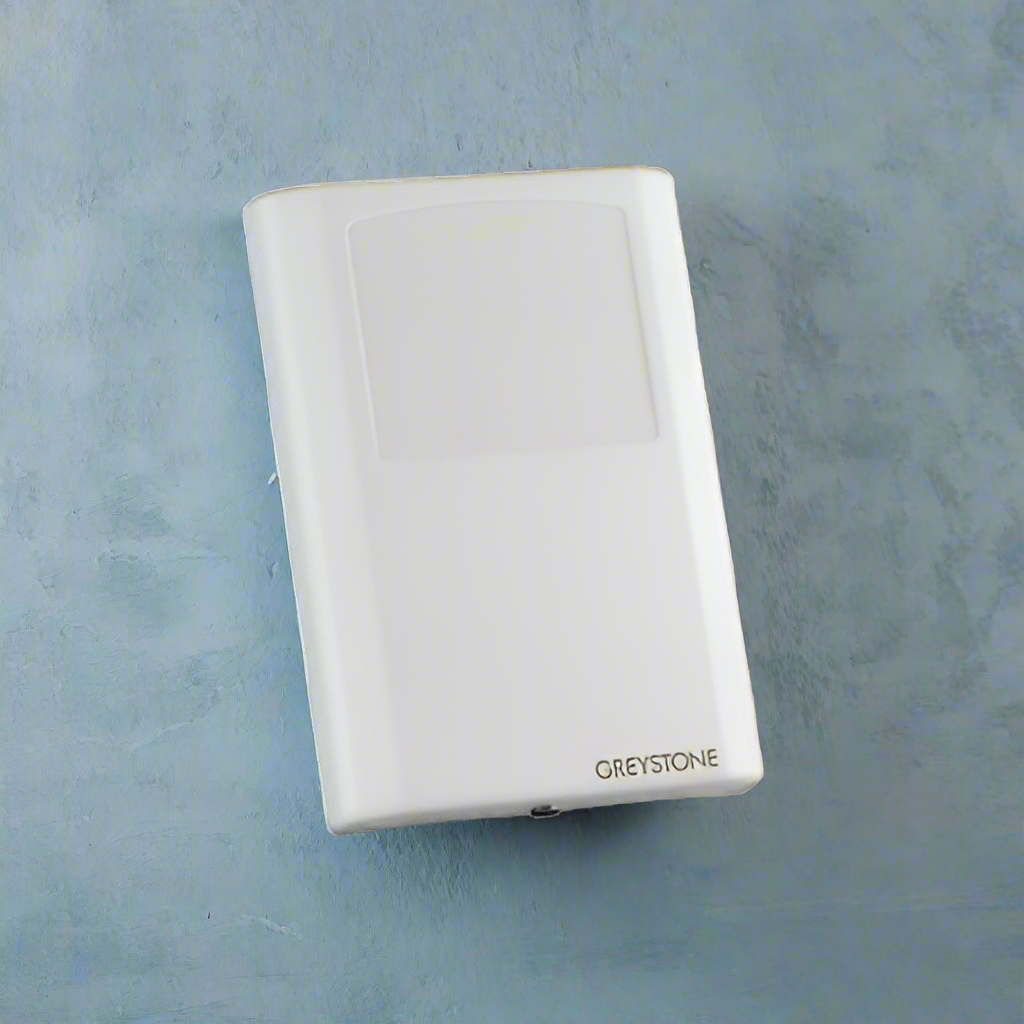

Greystone CERMC00 Room CO2 Transmitter, 0-2000 ppm, No Temperature Sensor

Greystone CERMC00 Room CO2 Transmitter, 0-2000 ppm, No Temperature Sensor

Regular price $192.12 USD
Regular price Sale price $192.12 USD
Sale
Shipping calculated at checkout.

Greystone CERMC00 is a room carbon dioxide transmitter using a dual-channel non-dispersive infrared (NDIR) sensor to monitor ambient CO2 levels. The measurement range is 0-2000 ppm, with accuracy of +/-(30 ppm + 3% of reading). Its CO2 analog output is field selectable for 4-20 mA, 0-5 Vdc or 0-10 Vdc.

The 00 configuration has no optional temperature sensor. The basic CO2 transmitter uses a 3-wire connection and screw terminals for building automation wiring.

Power supply is 24 Vac/dc +/-15%. The low-profile ABS enclosure mounts directly on a single-gang electrical box or a wall. Operating conditions are 0-50 C (32-122 F) and 0-90% RH, non-condensing.

The sensor uses self-calibration and is recommended for spaces where CO2 approaches normal ambient levels of about 400 ppm for at least one hour per day. For spaces occupied 24 hours a day or with consistently higher CO2 levels, the manufacturer recommends the CD2 series instead.

Product Literature
