Greystone FPP12 300 mm (12") Stainless steel flow pressure probe
Greystone FPP12 300 mm (12") Stainless steel flow pressure probe
Couldn't load pickup availability
Greystone FPP12 is a flow pressure probe (impact) for pressure sensing in the inlet section of variable air volume (VAV) terminal units and fan terminal units. It can also be used at other pressure-sensing locations in main or branch duct systems.

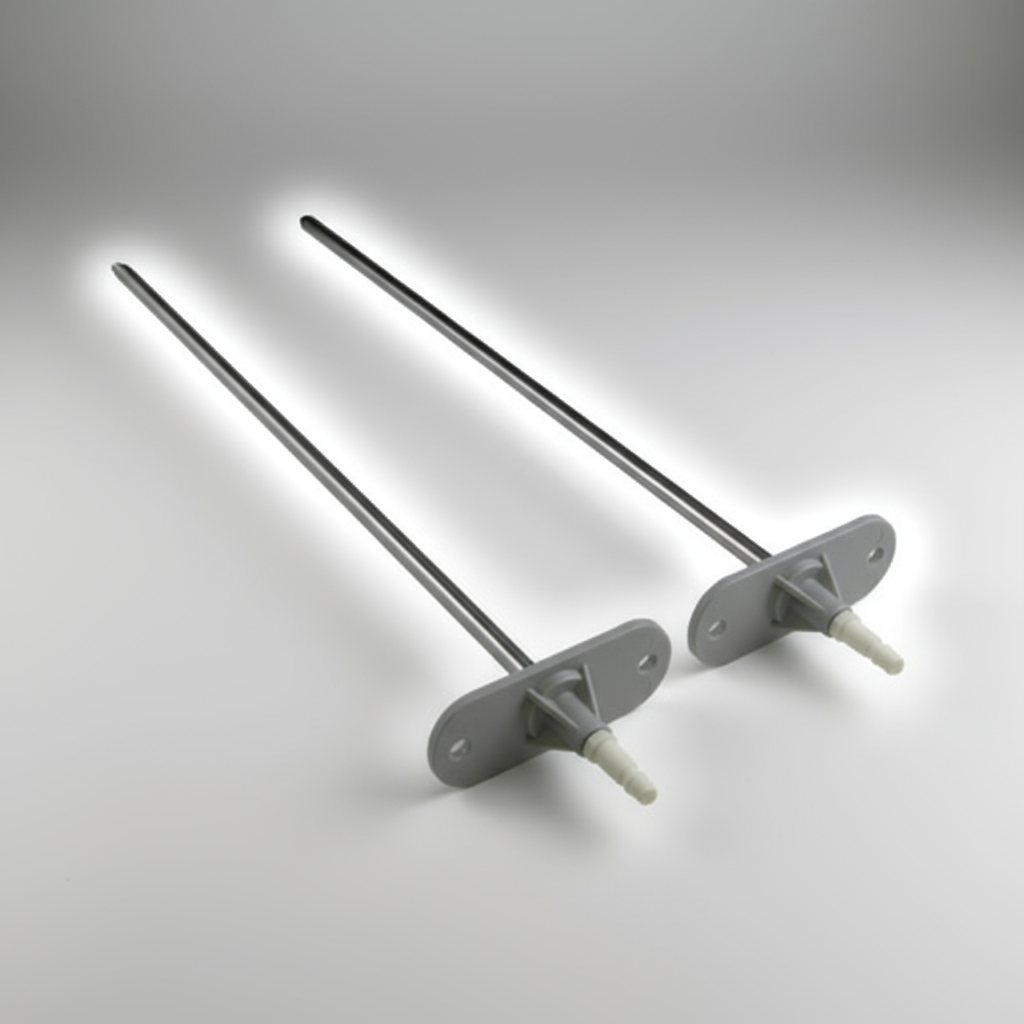

This model has a 300 mm (12 in) long, 304 series stainless-steel probe with a diameter of 6.35 mm (0.250 in). The mounting bracket is ABS with a UL94-5VB material rating. The specified connection is a 6.35 mm (1/4 in) nipple for 9.5 mm (3/8 in) outside-diameter polyethylene tubing.
The manufacturer recommends selecting a location 5-8 duct diameters from elbows, obstructions or significant changes in duct area. Drill an 8 mm (5/16 in) hole, insert the probe, and orient it according to the marked flow direction. Install horizontally and secure the bracket through its 4.75 mm (3/16 in) mounting holes with two self-tapping screws, following the manufacturer installation instructions.
Route the pressure tubing without sharp bends at connections, since bends and creases can develop leaks as tubing ages. This listing covers the base FPP12 probe; it does not describe the contents of a separate -K kit.
Product Literature
- Datasheet — Greystone FPP-SPP Series Datasheet
