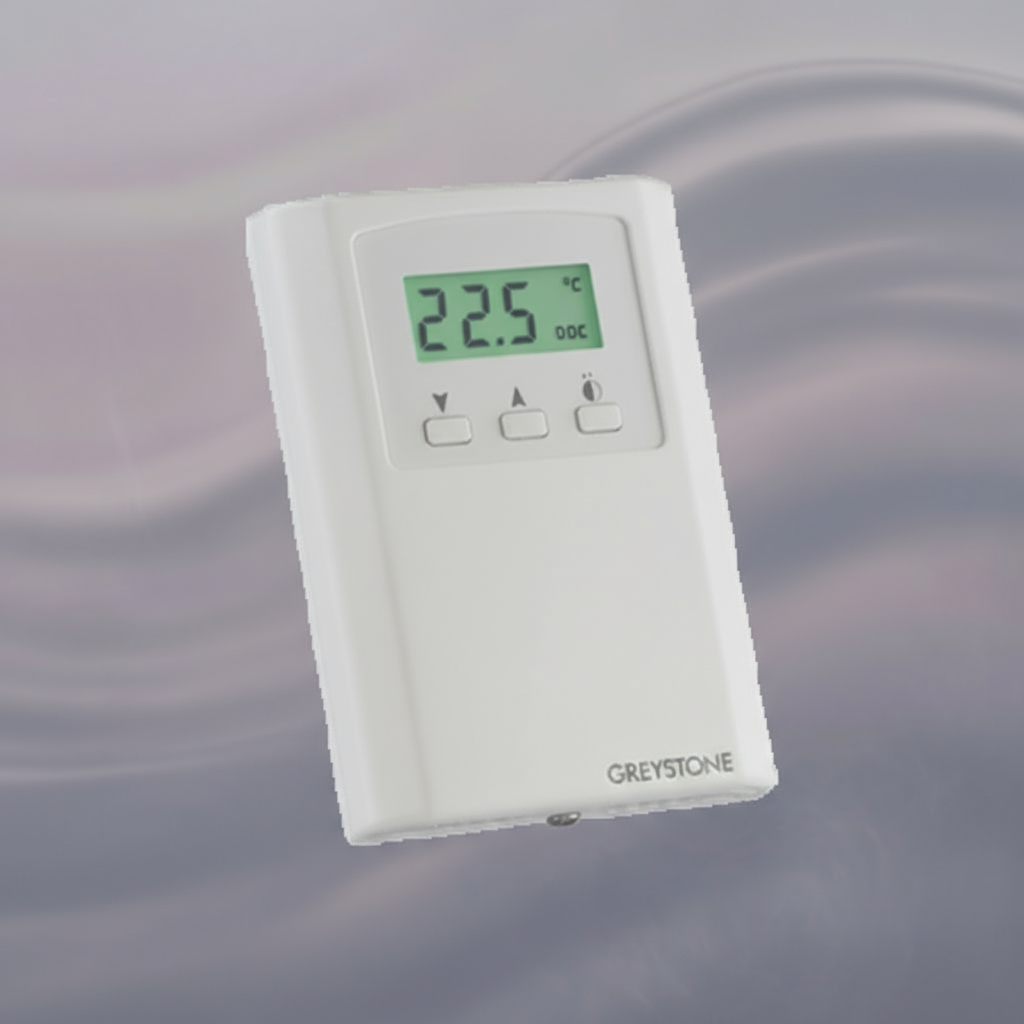

Greystone NTRCLRHDF Network Temp/RH Sensor, BACnet/Modbus, Viewable LCD, Digital Input, 5-Pos Fan Switch

Greystone NTRCLRHDF Network Temp/RH Sensor, BACnet/Modbus, Viewable LCD, Digital Input, 5-Pos Fan Switch

Regular price $255.23 USD
Regular price Sale price $255.23 USD
Sale
Shipping calculated at checkout.

Greystone NTRCLRHDF is a network room temperature and humidity sensor with menu-selectable BACnet MS/TP or Modbus RTU communication over a two-wire RS-485 network. Temperature measurement spans 0-50 C (32-122 F), with typical accuracy of +/-0.2 C (+/-0.4 F). This configuration also measures 0-100% RH, non-condensing, with 2% RH accuracy.

Configuration: viewable back-lit LCD; five-position fan-speed switch; no optional setpoint adjustment; no optional override switch; no optional relay output; dry-contact digital input, activated by shorting to COMMON. The sensor uses a 20-28 Vac/dc supply and a white ABS IP30 enclosure, suitable for direct wall or single-gang electrical-box mounting.
