SKU:TE200AD13
Greystone TE200AD13 Designer Room, 1,000 ohm Nickel RTD
Greystone TE200AD13 Designer Room, 1,000 ohm Nickel RTD
Couldn't load pickup availability
Greystone TE200AD13 is a designer room temperature sensor with a 1,000 ohm nickel RTD, Class B, DIN 43760. The sensor provides a passive resistance output for temperature monitoring, not an active current or voltage transmitter signal. The specified temperature range is 0-70 C (32-158 F).
This is the sensor-only configuration without optional setpoint adjustment or manual override. Sensor-only models use pigtail connections. Follow the manufacturer installation instructions for the selected sensor and option configuration.

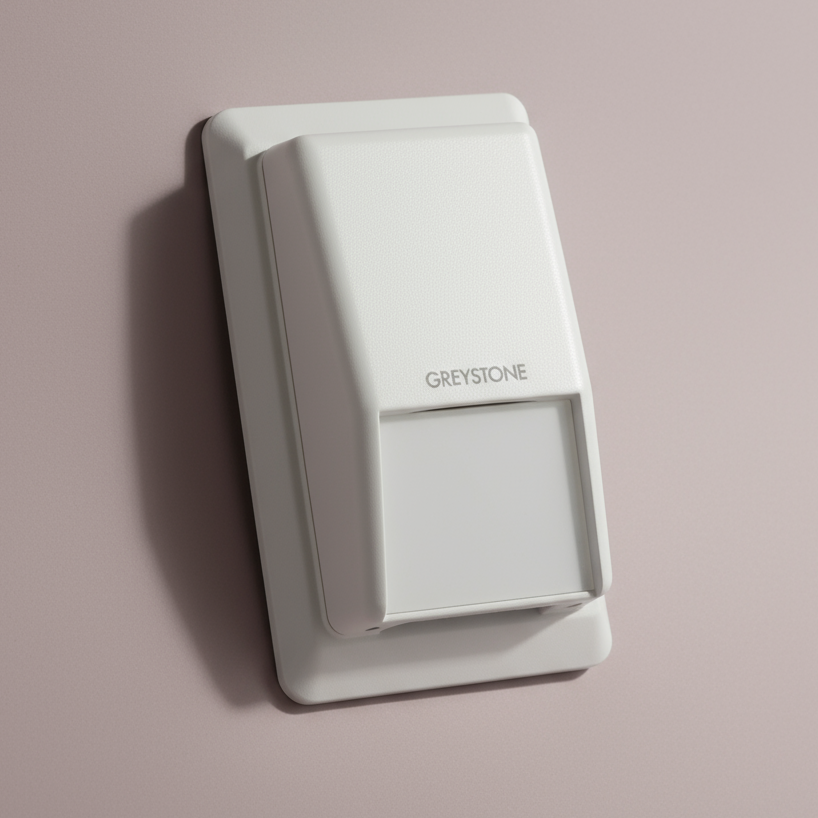

The low-profile white ABS enclosure is rated IP20 (NEMA 1) and measures 114.3 x 69.85 x 31.8 mm (4.5 x 2.75 x 1.25 in). It mounts directly to a wall or a single-gang electrical box. Insulating foam on the back of the enclosure provides a thermal barrier from internal wall temperatures.
Product Features
- Sensor code 13: 1000 ohm Nickel RTD, Class B, DIN 43760
Product Literature
- Datasheet — Greystone TE200AD Series Datasheet
