SKU:TE200AD2BS

Greystone TE200AD2BS Designer Room, PT100 OHM Platinum c/w override button

Greystone TE200AD2BS Designer Room, PT100 OHM Platinum c/w override button

Regular price $68.36 USD
Regular price Sale price $68.36 USD
Sale
Shipping calculated at checkout.

Greystone TE200AD2BS is a designer room temperature sensor with a 100 ohm platinum RTD, IEC 751, 385 alpha, thin-film. The sensor provides a passive resistance output for temperature monitoring, not an active current or voltage transmitter signal. The specified temperature range is 0-70 C (32-158 F).

The BS option provides an exposed push-button momentary override switch with normally open contacts. Models with options use terminal-block connections. Follow the manufacturer installation instructions for the selected sensor and option configuration.

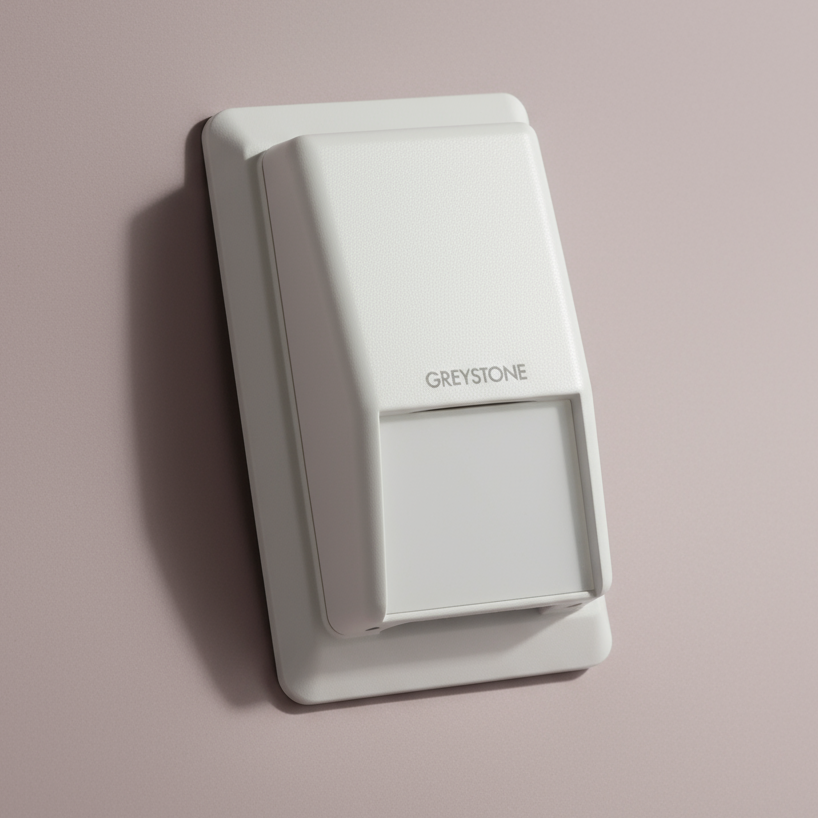

The low-profile white ABS enclosure is rated IP20 (NEMA 1) and measures 114.3 x 69.85 x 31.8 mm (4.5 x 2.75 x 1.25 in). It mounts directly to a wall or a single-gang electrical box. Insulating foam on the back of the enclosure provides a thermal barrier from internal wall temperatures.

Product Features

  • Sensor code 2: 100 ohm Platinum RTD, IEC 751, 385 Alpha, thin film
  • Option code BS: Exposed momentary push button, normally open
