SKU:TE500AD121D2

Greystone TE500AD121D2 Designer Room transmitter, c/w 24 Vac/dc supply, 0-5VDC output and 0-50C(32-122F) range.

Greystone TE500AD121D2 Designer Room transmitter, c/w 24 Vac/dc supply, 0-5VDC output and 0-50C(32-122F) range.

Regular price $85.45 USD
Regular price Sale price $85.45 USD
Sale
Shipping calculated at checkout.

Greystone TE500AD121D2 is a designer room temperature transmitter with a 1,000 ohm platinum RTD, IEC 751, 385 alpha, thin-film. This model has a factory-configured 0-5 Vdc output scaled for 0-50 C (32-122 F). This model's configured output range is distinct from the enclosure operating limits.

Sensor accuracy is +/-0.3 C (+/-0.54 F) at 0 C (32 F). Transmitter accuracy is +/-0.1% of span, including linearity. The specified power input range for this output is 10-35 Vdc or 10-32 Vac. Follow the manufacturer installation and wiring instructions for the configured output model; do not assume the wiring of a different output type.

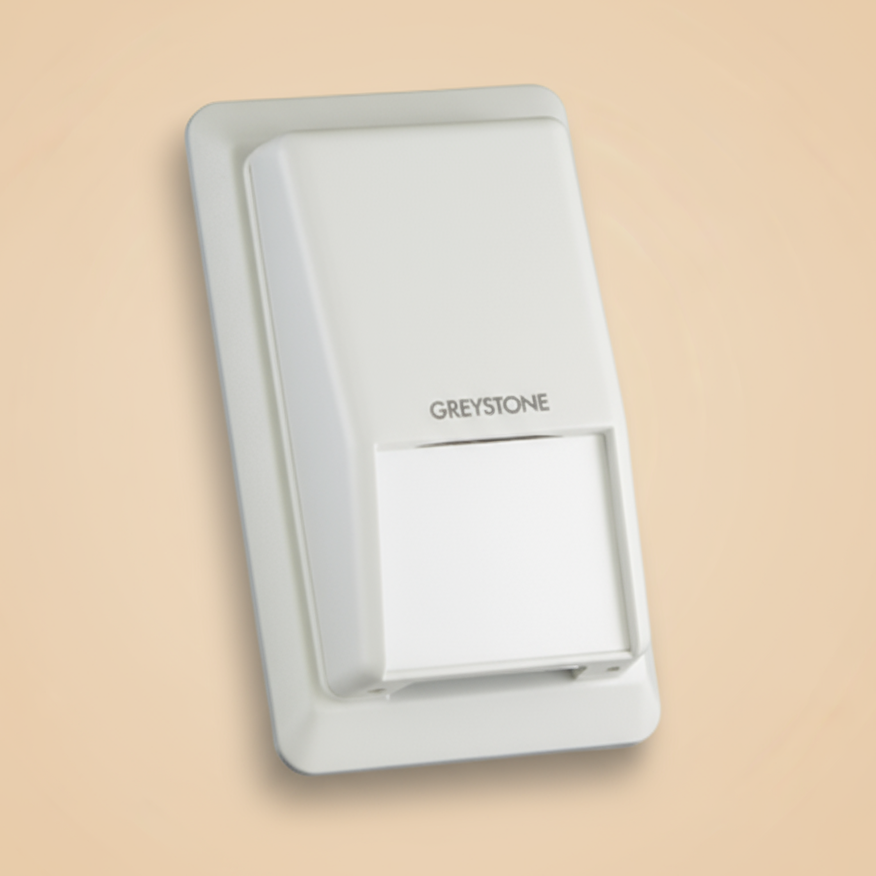

The low-profile white ABS enclosure is rated IP20 (NEMA 1) and measures 114.3 x 69.85 x 31.8 mm (4.5 x 2.75 x 1.25 in). It mounts directly to a wall or a single-gang electrical box. Insulating foam on the back of the enclosure provides a thermal barrier from internal wall temperatures.

Operating conditions are 0-70 C (32-158 F) and 0-95% RH, non-condensing. Screw-terminal connections accept 14-22 AWG wiring. The transmitter includes reverse-voltage protection and an output-limited protection circuit.

Product Features

  • Sensor: 1000 ohm platinum RTD
  • Output signal: 0-5 Vdc
  • Temperature range: 0 to 50 C (32 to 122 F)
  • Sensor accuracy: +/-0.3 C (+/-0.54 F) at 0 C (32 F)
  • Transmitter accuracy: +/-0.1% of span, including linearity
  • Power supply: 10-35 Vdc or 10-32 Vac
  • Operating conditions: 0 to 70 C (32 to 158 F), 0 to 95% RH non-condensing
  • Enclosure: white ABS, IP20 (NEMA 1)
  • Dimensions: 114.3 mm L x 69.85 mm W x 31.8 mm D (4.5 x 2.75 x 1.25 in)
  • Termination: screw terminal block, 14 to 22 AWG
