SKU:TE500AS121D2TP
Greystone TE500AS121D2TP Stainless plate/surface transmitter, c/w 24 Vac/dc supply, tamperproof screws, 0-5VDC output and 0-50C(32-122F) range.
Greystone TE500AS121D2TP Stainless plate/surface transmitter, c/w 24 Vac/dc supply, tamperproof screws, 0-5VDC output and 0-50C(32-122F) range.
Couldn't load pickup availability

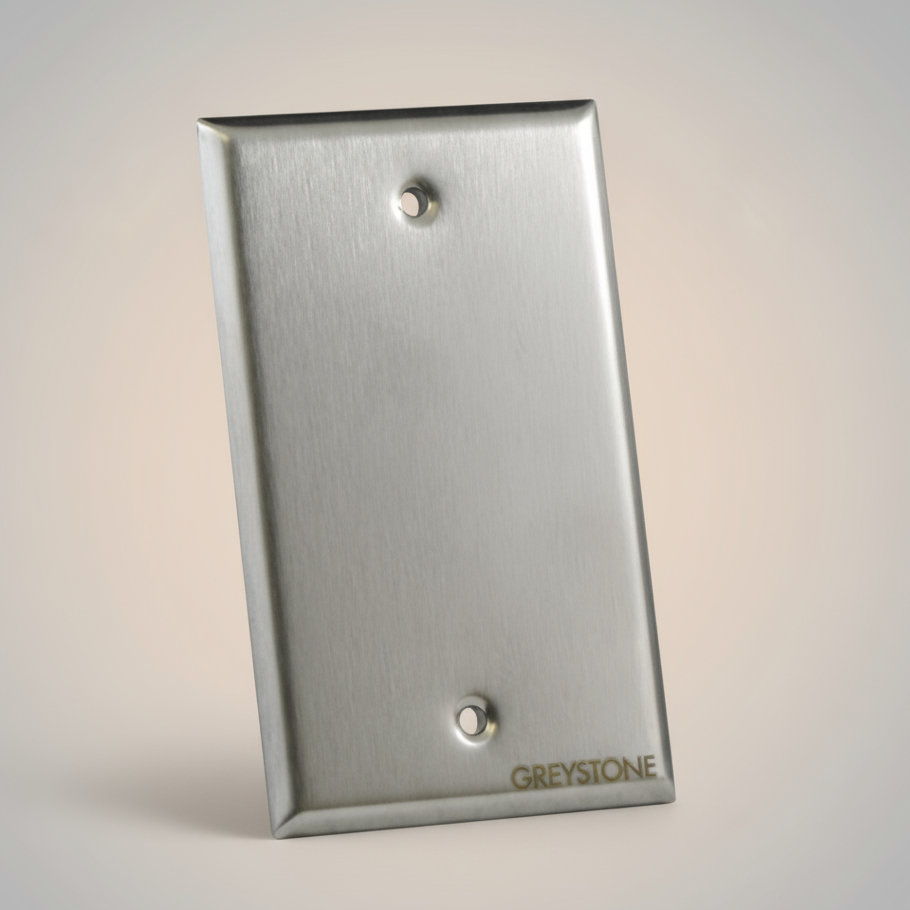

Greystone TE500AS121D2TP is a room temperature transmitter built into a low-profile, single-gang stainless-steel wall plate. It uses a 1,000 ohm platinum RTD, IEC 751, 385 alpha, thin-film, with a factory-configured 0-5 Vdc output scaled for 0-50 C (32-122 F). The configured output range is distinct from the transmitter operating limits.
Sensor accuracy is +/-0.3 C (+/-0.54 F) at 0 C (32 F). Transmitter accuracy is +/-0.1% of span, including linearity. The specified power input range for this output is 10-35 Vdc or 10-32 Vac. Follow the manufacturer installation and wiring instructions for the configured output model.
The stainless-steel wall plate is rated IP50 (NEMA 1). The specification table gives dimensions of 114.3 x 69.85 x 4.75 mm (4.5 x 2.75 x 0.1875 in). It mounts directly to a wall or a single-gang electrical box. Insulating foam on the back provides a thermal barrier from internal wall temperatures. The TP option provides tamperproof screws.
Operating conditions are 0-70 C (32-158 F) and 0-95% RH, non-condensing. Screw-terminal connections accept 14-22 AWG wiring. The transmitter includes reverse-voltage protection and an output-limited protection circuit.
Product Features
- Sensor: 1000 ohm platinum RTD
- Output signal: 0-5 Vdc
- Temperature range: 0 to 50 C (32 to 122 F)
- Sensor accuracy: +/-0.3 C (+/-0.54 F) at 0 C (32 F)
- Transmitter accuracy: +/-0.1% of span, including linearity
- Power supply: 10-35 Vdc or 10-32 Vac
- Operating conditions: 0 to 70 C (32 to 158 F), 0 to 95% RH non-condensing
- Enclosure: stainless steel, IP50 (NEMA 1)
- Dimensions: 114.3 mm L x 69.85 mm W x 4.75 mm D (4.5 x 2.75 x 0.1875 in)
- Termination: screw terminal block, 14 to 22 AWG
- Option: tamperproof screws
Product Literature
- Datasheet — Greystone TE500AS Series Datasheet
