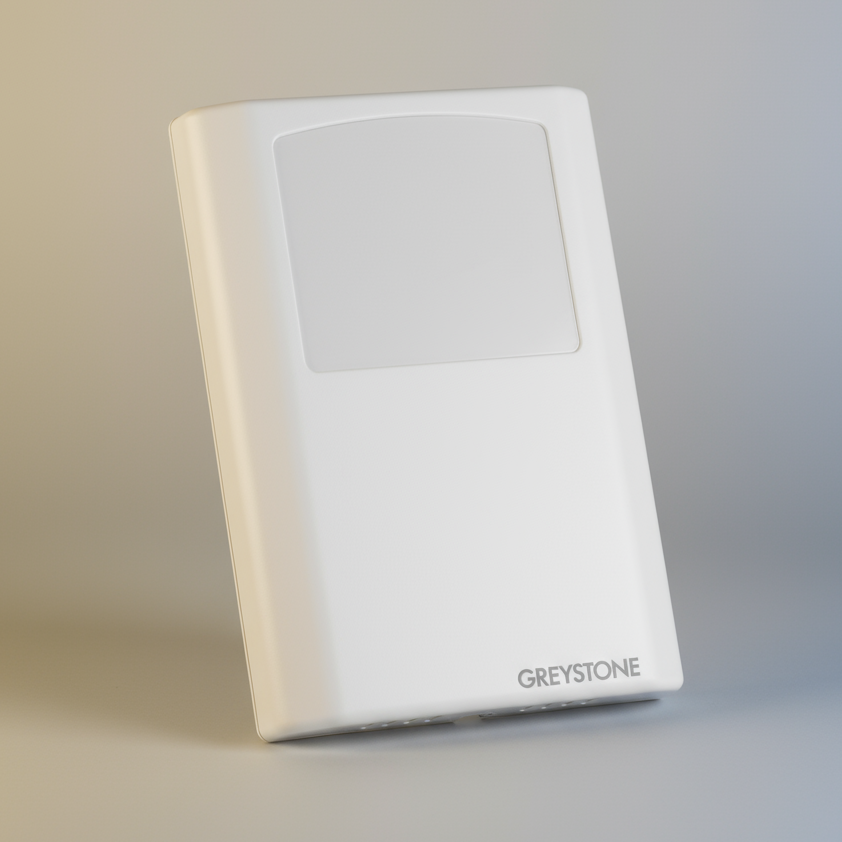

Greystone TSRC2E Continental Room, 100 ohm RTD,c/w communication jack

Greystone TSRC2E Continental Room, 100 ohm RTD,c/w communication jack

Regular price $64.89 USD
Regular price Sale price $64.89 USD
Sale
Shipping calculated at checkout.

Greystone TSRC2E is a room temperature sensor with a 100 ohm platinum RTD, IEC 751, 385 alpha, thin-film. Specified sensor accuracy is +/-0.3 C at 0 C. The sensing output is resistance, not an active 4-20 mA or voltage transmitter output.

This configuration includes a external communication jack for remote system access, using a 4-pin header connected to a 4-pin terminal block. Connections use a terminal block; follow the installation instructions for the selected options.

The low-profile white ABS enclosure is rated IP30 (NEMA 1) and mounts directly to a wall or a single-gang electrical box. Rear insulating foam provides a thermal barrier from internal wall temperatures. Ambient operating conditions are 0-60 C (32-140 F) and 5-95% RH, non-condensing.
