SKU:TXRPE12AE001
Greystone TXRPE12AE001 Temperature Transmitter, Remote Probe - strap-on, ABS enclosure 50 mm (2"), 0-10 VDC 3 wire, 0°C to 35°C (32°F to 95°F)
Greystone TXRPE12AE001 Temperature Transmitter, Remote Probe - strap-on, ABS enclosure 50 mm (2"), 0-10 VDC 3 wire, 0°C to 35°C (32°F to 95°F)
Couldn't load pickup availability

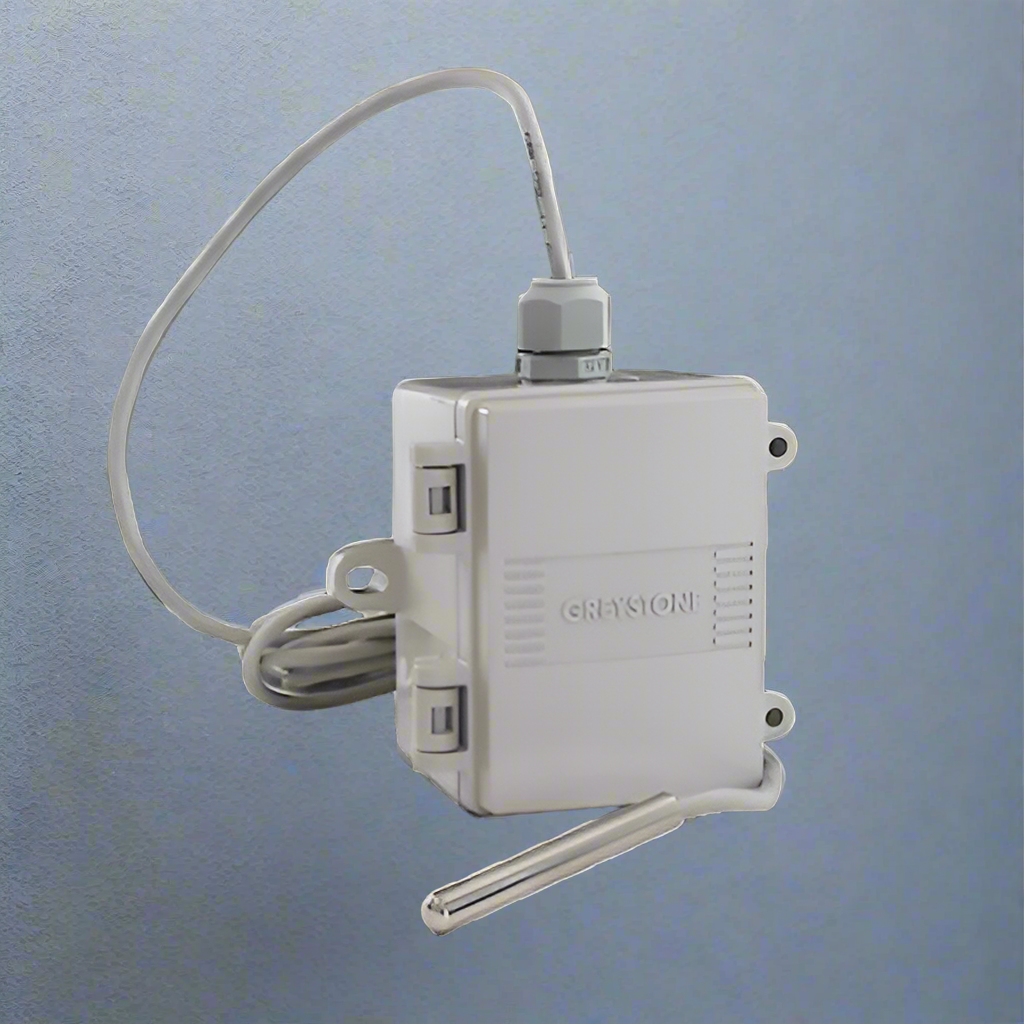

Greystone TXRPE12AE001 is a remote-probe strap-on temperature transmitter for pipe-surface measurement. It uses a 1,000 ohm platinum RTD (IEC 751, 385 alpha, thin-film) encapsulated in a 50 mm (2 in) long, 6 mm diameter 304 stainless steel probe, with a 1.524 m (5 ft) PVC-insulated sensor cable.
This model provides a factory-configured 0-10 Vdc output scaled to 0-35 C (32-95 F), with transmitter accuracy of +/-0.1% of span. It uses a 15-35 Vdc or 15-28 Vac supply.
The ABS IP65 (NEMA 4X) enclosure has a hinged, gasketed cover and includes a 1/2 in NPT-to-M16 thread adapter and cable gland fitting. For mounting, secure the probe directly against the pipe with a pipe clamp; thermal conductive compound is recommended for best results.
Product Literature
- Datasheet — Greystone TXRP Series Datasheet
