Inovonics EN1210 Single-Input Universal Transmitter
Inovonics EN1210 Single-Input Universal Transmitter
Couldn't load pickup availability

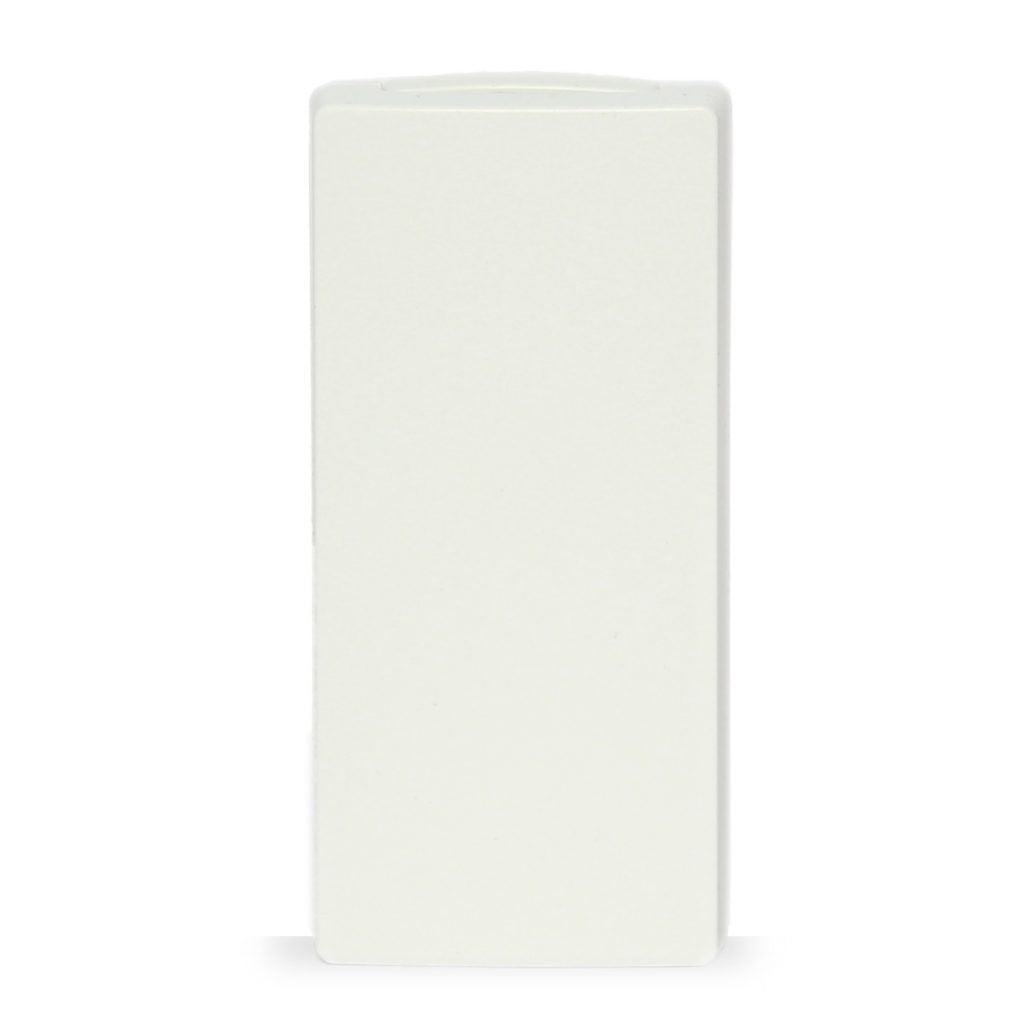

The Inovonics EN1210 is a single-input universal wireless transmitter for standard normally open or normally closed contacts. It is fully supervised and includes case tamper protection.
A battery and mounting bracket are included.
EchoStream wireless communication operates at 902-928 MHz using frequency-hopping spread spectrum, with a 3-minute check-in interval. The internal battery is a Panasonic CR123A, with a typical battery life of 3-5 years. Actual battery life varies with use and operating conditions.
External contacts use 14-22 gauge unshielded wire, with a maximum contact-to-transmitter distance of 10 ft (3 m). Dimensions are 3.5 x 1.7 x 0.9 in, and weight is 1.9 oz (54 g). The operating environment is -20 to 60 degrees C and up to 90% RH, non-condensing.
Product Features
- Single external input for NO/NC contacts
- 902-928 MHz EchoStream frequency-hopping spread spectrum
- 3-minute check-in interval
- Case tamper protection
- Panasonic CR123A battery; typical 3-5 year battery life
- External contact wiring: 14-22 gauge unshielded; 10 ft (3 m) maximum
- 3.5 x 1.7 x 0.9 in; 1.9 oz (54 g)
- -20 to 60 degrees C; up to 90% RH non-condensing
- Mounting bracket included
Product Literature
- Datasheet — Inovonics_EN1210_Datasheet
