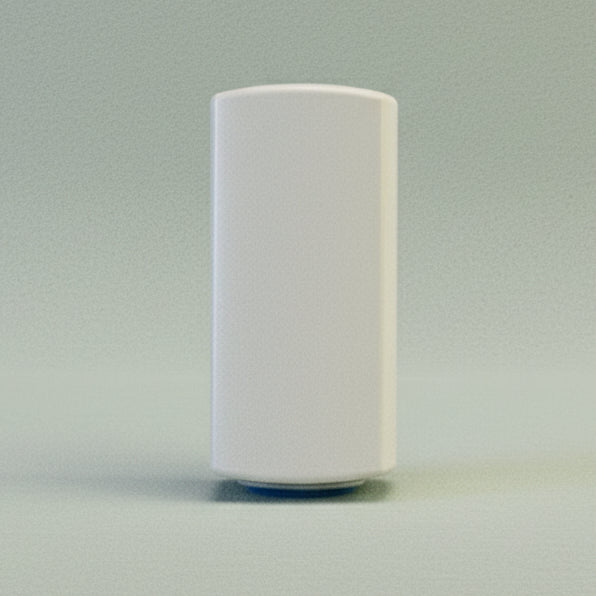

Inovonics EN1252 Long-Range Dual-Input Universal Transmitter
Inovonics EN1252 Long-Range Dual-Input Universal Transmitter
Couldn't load pickup availability
The Inovonics EN1252 is a long-range dual-input universal wireless transmitter for contacts or sensors that provide a contact closure. Input one is selectable for normally open or normally closed operation; input two is normally closed only.
RF output is 24 dBm (250 mW) equivalent isotropically radiated power. The transmitter is fully supervised, with programmable check-in time, user-defined ID and input configuration. The listed check-in interval is 3 minutes.
The specified internal battery is Panasonic CR123A. Typical battery life is 1-2 years, excluding current drawn by external devices; actual life varies with use and operating conditions. An external-power option is supported.
External contacts use 14-22 gauge unshielded wire with a maximum length of 10 ft. EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Weight is 1.5 oz. Operating conditions are -4 to 140 degrees F and up to 90% RH, non-condensing.
Product Features
- Dual inputs: input one NO/NC selectable; input two normally closed only
- 24 dBm (250 mW) EIRP RF output
- Fully supervised; listed 3-minute check-in interval
- Programmable check-in time, user-defined ID and input configuration
- Panasonic CR123A; typical 1-2 year battery life excluding external-device current
- External contact wiring: 14-22 gauge unshielded; 10 ft maximum
- 902-928 MHz EchoStream frequency-hopping spread spectrum
- Weight 1.5 oz; -4 to 140 degrees F; up to 90% RH non-condensing
Product Literature
- Datasheet — Inovonics_EN1252_Datasheet
