SKU:EN1941

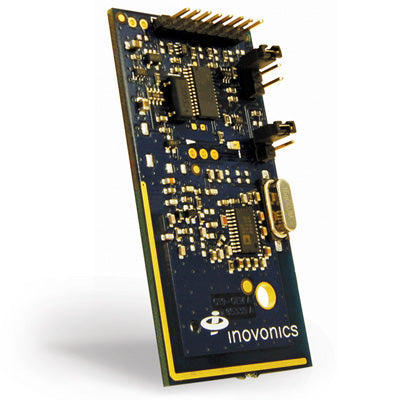

Inovonics EN1941 One-Way Binary RF Module

Inovonics EN1941 One-Way Binary RF Module

Regular price $54.14 USD
Regular price Sale price $54.14 USD
Sale
Shipping calculated at checkout.

The Inovonics EN1941 one-way binary RF module provides wireless communication for OEM integrators. Two alarm input pins support dual-input applications such as call notification and other switch or alarm conditions that need wireless transmission.

The standard EN1941 has a 3-minute check-in interval. It requires an external 2.6-5.5 VDC supply that maintains at least 2.6 V and can supply 100 mA during the transmit cycle.

Average current draw is 32 uA with check-in messages every 3 minutes and an average of one alarm message per day. Peak transmit current is less than 100 mA. One alarm/restore cycle per hour adds approximately 15 uA to average current draw.

EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Dimensions are 2.525 x 1.3 x 0.5 in. Operating conditions are -20 to 60 degrees C and up to 90% RH, non-condensing. This is an integration module, not a finished enclosed sensor.

Product Features

  • One-way binary RF module for OEM integration
  • Two alarm input pins support dual-input applications
  • Standard EN1941 check-in interval: 3 minutes
  • External 2.6-5.5 VDC supply; 100 mA transmit-cycle supply capability required
  • Conditional average current draw: 32 uA at 3-minute check-ins and one alarm per day
  • Peak transmit current less than 100 mA
  • 902-928 MHz EchoStream frequency-hopping spread spectrum
  • 2.525 x 1.3 x 0.5 in; -20 to 60 degrees C; up to 90% RH non-condensing
