SKU:EN1941XS-BU
Inovonics EN1941XS-BU One-Way Serial Data RF Module 50-Pack
Inovonics EN1941XS-BU One-Way Serial Data RF Module 50-Pack
Couldn't load pickup availability

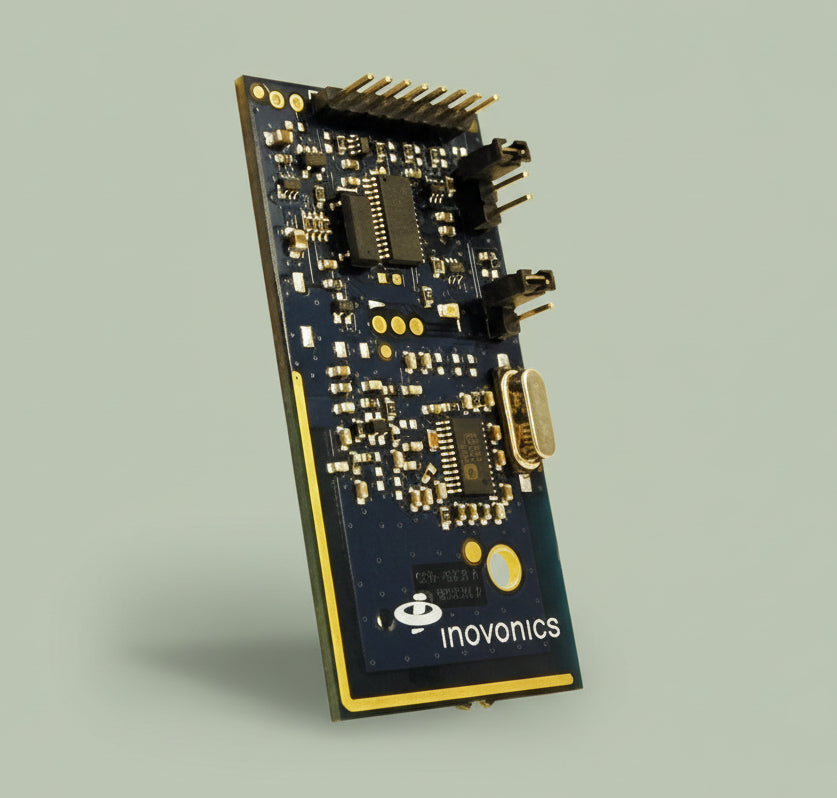

The Inovonics EN1941XS-BU is a 50-pack of one-way serial data RF modules for OEM integration. Each module connects to a serial interface to transmit user-defined variable data to a head-end application controller. It is a communication module, not a sensor that measures these values.
The serial interface uses positive logic with a default rate of 9600 baud, 8 data bits, no parity and 1 stop bit. Data is sent least significant bit first. Each module has an on-board voltage regulator and requires an external 2.6-5.5 VDC supply, with voltage maintained at or above 2.6 V. EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Dimensions are 2.525 x 1.3 x 0.5 in. Operating conditions are -20 to 60 degrees C and up to 90% RH, non-condensing.
Sold as a full 50-pack. Pack price: $2758.50 USD, equivalent to approximately $55.17 USD per device (pack price divided by 50, rounded to the nearest cent). Devices are not sold individually under this listing.
Batteries not included.
Product Features
- Sold as a full 50-pack; devices not sold individually
- One-way serial data RF modules for OEM integration
- Transmits user-defined variable data to a head-end controller
- Default serial format: 9600 baud, 8 data bits, no parity, 1 stop bit
- Positive logic; least significant bit first
- On-board regulator; external 2.6-5.5 VDC supply required
- 902-928 MHz EchoStream wireless communication
- Batteries not included
Product Literature
- Datasheet — Inovonics_EN1941XS_Datasheet
