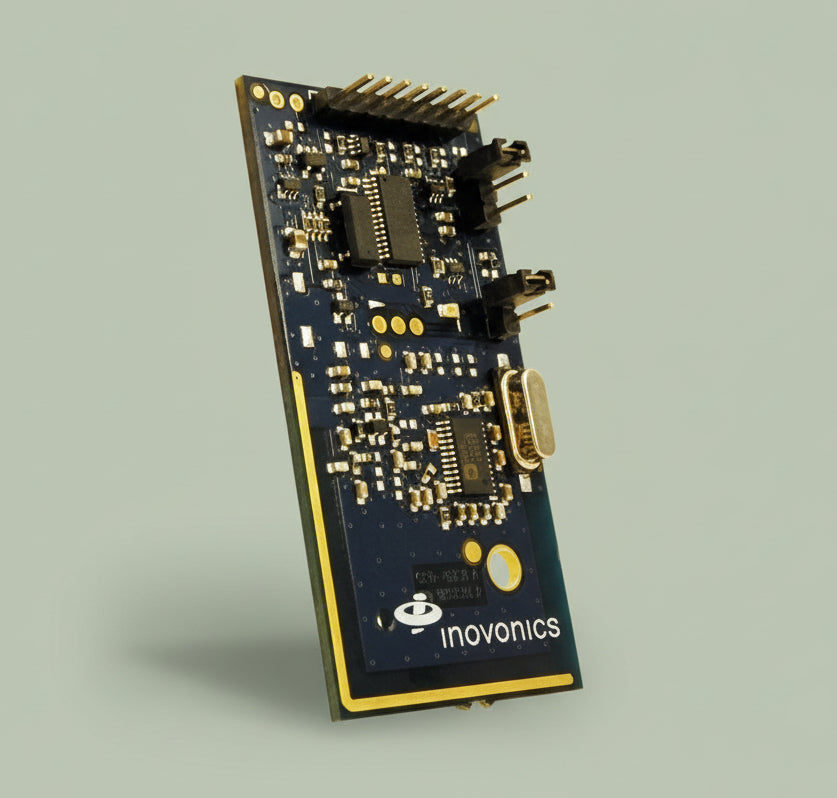

Inovonics EN1941XS One-Way Serial Data RF Module
Inovonics EN1941XS One-Way Serial Data RF Module
Couldn't load pickup availability
The Inovonics EN1941XS one-way serial data RF module provides wireless serial communication for OEM integrators. It connects to a serial interface to transmit user-defined variable data, such as temperature, humidity, pressure or liquid-level readings, to a head-end application controller. It is a communication module, not a sensor that measures these values.
The serial interface uses positive logic with a default rate of 9600 baud, 8 data bits, no parity and 1 stop bit. Data is sent least significant bit first. The module has an on-board voltage regulator and requires an external 2.6-5.5 VDC supply, with voltage maintained at or above 2.6 V.
EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Dimensions are 2.525 x 1.3 x 0.5 in. Operating conditions are -20 to 60 degrees C and up to 90% RH, non-condensing.
Product Features
- One-way serial data RF module for OEM integration
- Transmits user-defined variable data to a head-end controller
- Default serial format: 9600 baud, 8 data bits, no parity, 1 stop bit
- Positive logic; least significant bit first
- On-board voltage regulator; external 2.6-5.5 VDC supply required
- 902-928 MHz EchoStream frequency-hopping spread spectrum
- 2.525 x 1.3 x 0.5 in; -20 to 60 degrees C; up to 90% RH non-condensing
Product Literature
- Datasheet — Inovonics_EN1941XS_Datasheet
