Inovonics EN4080 IP Gateway
Inovonics EN4080 IP Gateway
Couldn't load pickup availability

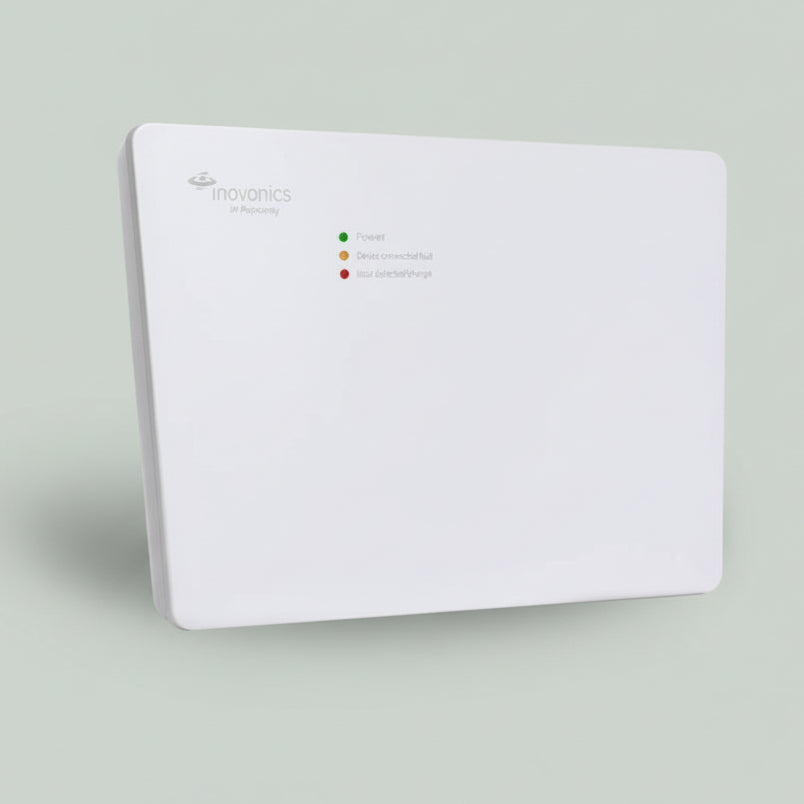

The Inovonics EN4080 IP gateway combines EN4000 receiver functionality with an IP appliance. It supports 10/100Base-T Ethernet and 2.4 GHz 802.11b/g/n WiFi connectivity, with DHCP or static IP addressing.
MQTT message output requires an MQTT license. The MQTT license supports compatibility with Inovonics transmitters. Power over Ethernet is an optional feature. The gateway supports over-the-air updates, and external LEDs indicate power, IP connectivity and message receipt.
Line power can be supplied by an Inovonics ACC610 transformer, a 12-14 VAC intrinsically safe power supply rated for at least 16 W, or a 12-15 VDC supply rated for at least 15 W. Optional PoE uses IEEE 802.3af-2003-compliant power.
Message storage accommodates reporting from 150 transmitters for 30 days at 15-minute intervals, or equivalent. This describes storage conditions rather than a fixed transmitter-capacity limit. The gateway check-in interval is 3 minutes.
The router must allow outbound DNS on port 53 TCP/UDP, HTTPS on port 443 TCP, NTP on port 123 UDP and OTA on port 9000 TCP. When DHCP is used, the lease must be finite and non-zero; a duration greater than 30 seconds is recommended.
EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Operating conditions are 0-60 degrees C and up to 90% RH, non-condensing. Dimensions are 9.556 x 6.65 x 1.208 in, and weight is 1 lb 3.54 oz.
Product Features
- EN4000 receiver functionality with IP connectivity
- 10/100Base-T Ethernet and 2.4 GHz 802.11b/g/n WiFi
- DHCP or static IP addressing
- MQTT output requires MQTT license
- Optional IEEE 802.3af-2003 Power over Ethernet
- Over-the-air updates; power, IP and message LEDs
- 902-928 MHz EchoStream frequency-hopping spread spectrum
- Operating environment: 0-60 degrees C; up to 90% RH non-condensing
Product Literature
- Datasheet — Inovonics_EN4080-IP_Datasheet
