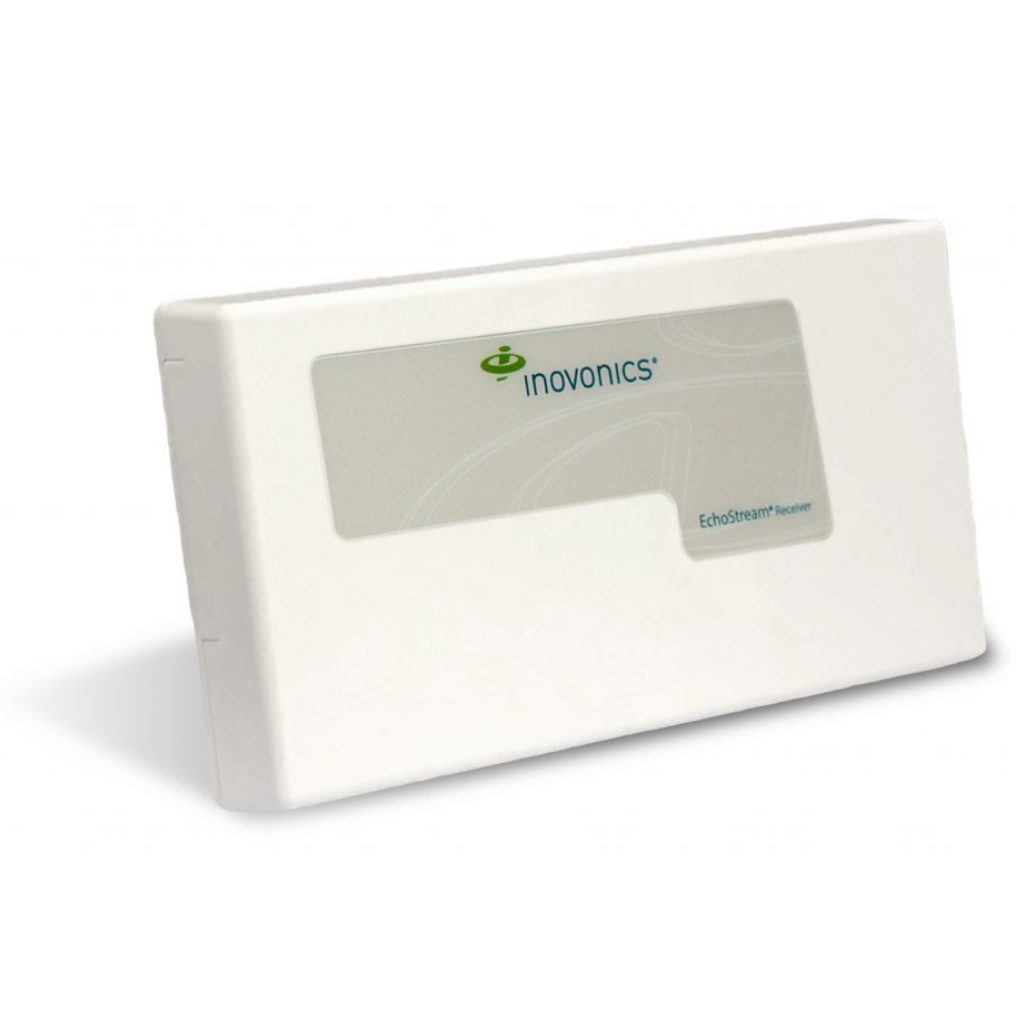

Inovonics EN4200 Security-Only Serial Receiver

Inovonics EN4200 Security-Only Serial Receiver

Regular price $188.97 USD
Regular price Sale price $188.97 USD
Sale
Shipping calculated at checkout.

The Inovonics EN4200 security-only serial receiver is a wireless gateway between EchoStream one-way security transmitters and a head-end application using an RS-232 serial interface.

It passes EchoStream-formatted messages to the application and supervises the connection between the receiver and application. Serial integration supports large wireless-device deployments through the head-end application.

The power requirement is 10-13.5 VDC at a minimum of 121 mA. EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum.

Dimensions are 6.54 x 3.62 x 1.05 in, and weight is 5.1 oz (145 g). Operating conditions are 32-140 degrees F and 90% RH, non-condensing.

Product Features

  • EchoStream one-way SECURITY transmitter integration only
  • RS-232 serial interface to head-end application
  • Passes EchoStream-formatted messages
  • Supervises receiver-to-application connection
  • 10-13.5 VDC; minimum 121 mA
  • 902-928 MHz frequency-hopping spread spectrum
  • 6.54 x 3.62 x 1.05 in; 5.1 oz (145 g)
  • 32-140 degrees F; 90% RH non-condensing
