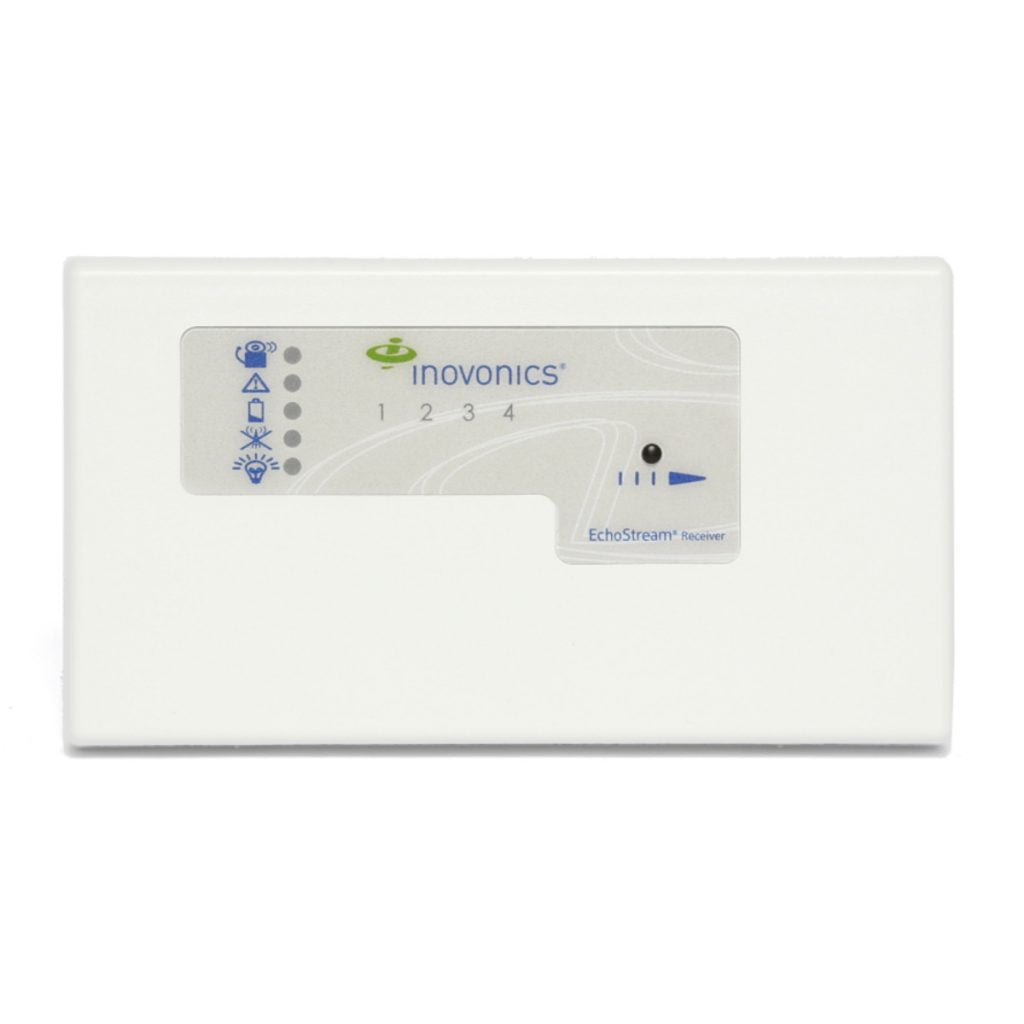

Inovonics EN4204R 4-Zone Receiver with Relay Outputs

Inovonics EN4204R 4-Zone Receiver with Relay Outputs

Regular price $164.14 USD
Regular price Sale price $164.14 USD
Sale
Shipping calculated at checkout.

The Inovonics EN4204R is a 4-zone wireless add-on receiver that programs and supervises up to 4 Inovonics transmitters. It provides 4 Form C alarm relay outputs and one Form C fault relay output for integration with hardwired control equipment or stand-alone wireless applications.

Outputs can be configured independently for follower, latching, momentary or toggle operation. LEDs show the current status of all four transmitters. Case tamper protection, jam detection and internal antennas are included.

The receiver requires 11-14 VDC at 400 mA. Relay contact ratings are 1 A at 28 VDC or 0.5 A at 30 VAC for resistive loads. The receiver case tamper contact is normally open, and the receiver jam indication is normally closed. The reset input accepts a contact closure or momentary low.

EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Operating conditions are 32-140 degrees F and up to 90% RH, non-condensing. Weight is 9.9 oz (280 g).

Product Features

  • Programs and supervises up to 4 transmitters
  • 4 Form C alarm relay outputs plus one Form C fault relay output
  • Independent follower, latching, momentary or toggle output modes
  • LED status indication for all four transmitters
  • Case tamper protection, jam detection and internal antennas
  • 11-14 VDC power requirement; 400 mA
  • Relay rating: 1 A at 28 VDC or 0.5 A at 30 VAC, resistive load
  • 902-928 MHz EchoStream frequency-hopping spread spectrum
  • 32-140 degrees F; up to 90% RH non-condensing
