SKU:EN4216MR

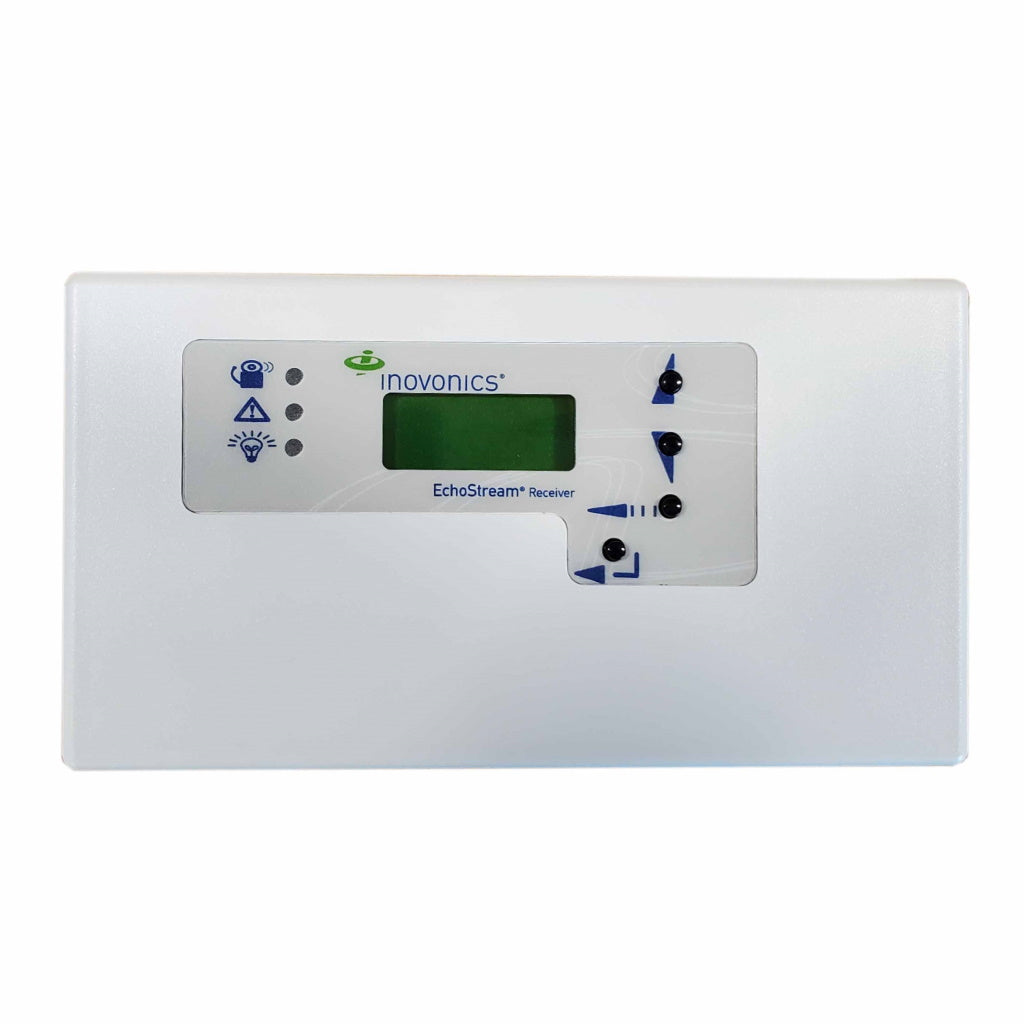

Inovonics EN4216MR 16-Zone Multi-Condition Receiver with Relay Outputs

Inovonics EN4216MR 16-Zone Multi-Condition Receiver with Relay Outputs

Regular price $296.55 USD
Regular price Sale price $296.55 USD
Sale
Shipping calculated at checkout.

The Inovonics EN4216MR is a 16-zone wireless add-on receiver that programs and supervises up to 16 single- or multiple-condition transmitters. It provides 5 Form C alarm relay outputs and one Form C fault relay output for integration with hardwired control equipment or stand-alone wireless applications.

Outputs can be configured independently for follower, latching, momentary or toggle operation. A two-line text display shows transmitter conditions, past events and signal strength. Case tamper protection, jam detection and internal antennas are included.

The receiver requires 11-14 VDC at 400 mA. Relay contact ratings are 1 A at 28 VDC or 0.5 A at 30 VAC for resistive loads. The receiver case tamper contact is normally open, and the receiver jam indication is normally closed. The reset input accepts a contact closure or momentary low.

EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Operating conditions are 32-140 degrees F and up to 90% RH, non-condensing. Weight is 9.9 oz (280 g).

Product Features

  • Programs and supervises up to 16 single- or multiple-condition transmitters
  • 5 Form C alarm relay outputs plus one Form C fault relay output
  • Independent follower, latching, momentary or toggle output modes
  • Two-line display with transmitter status, event log and signal strength
  • Case tamper protection, jam detection and internal antennas
  • 11-14 VDC power requirement; 400 mA
  • Relay rating: 1 A at 28 VDC or 0.5 A at 30 VAC, resistive load
  • 902-928 MHz EchoStream frequency-hopping spread spectrum
  • 32-140 degrees F; up to 90% RH non-condensing
