Inovonics EN4232MR 32-Zone Multi-Condition Receiver with Relay Outputs
Inovonics EN4232MR 32-Zone Multi-Condition Receiver with Relay Outputs
Couldn't load pickup availability

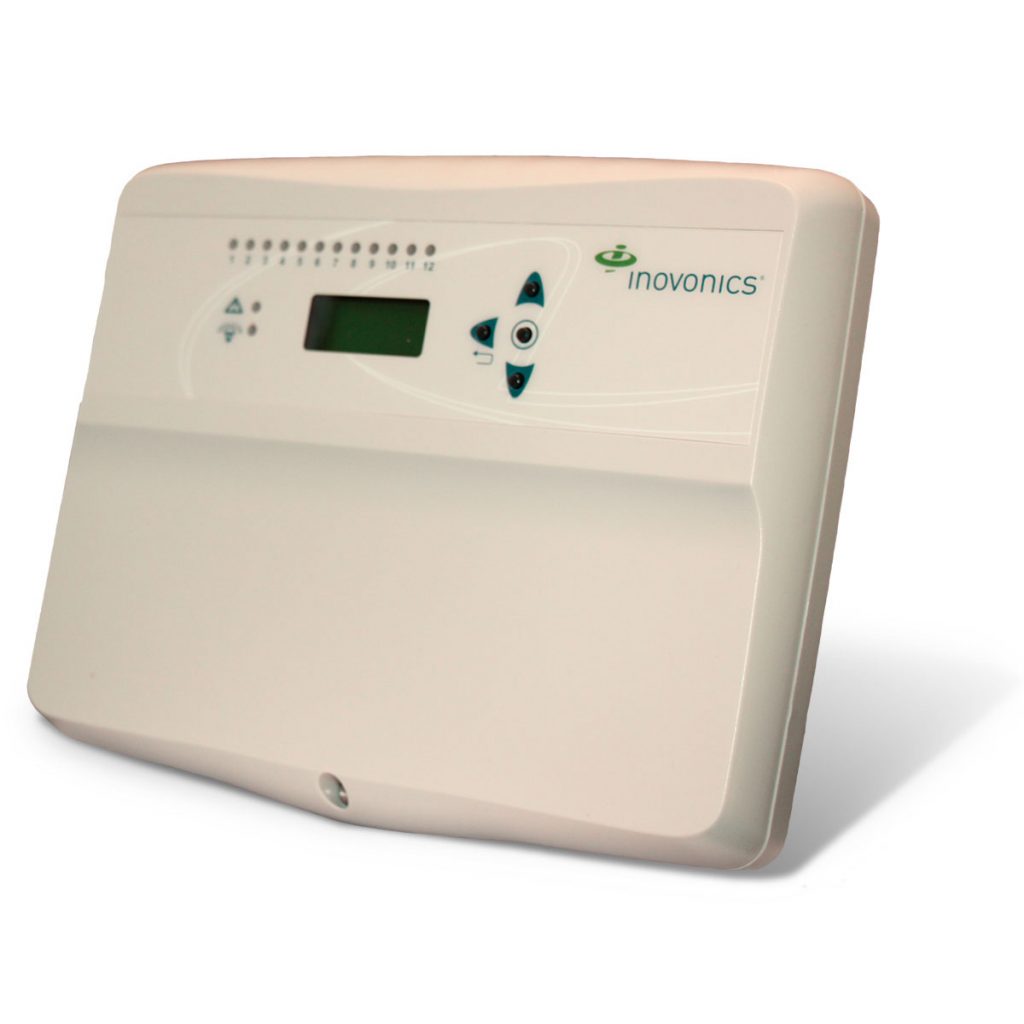

The Inovonics EN4232MR is a 32-zone wireless add-on receiver that programs and supervises up to 32 single- or multiple-condition transmitters. It provides 11 Form C alarm relay outputs and one Form C fault relay output for integration with hardwired control equipment or stand-alone wireless applications.
Outputs can be configured independently for follower, latching, momentary or toggle operation. A two-line text display shows transmitter conditions, past events and signal strength. Case tamper protection, jam detection and internal antennas are included.
The receiver requires 11-14 VDC at 500 mA. Relay contact ratings are 1 A at 28 VDC or 0.5 A at 30 VAC for resistive loads. The receiver case tamper contact is normally open, and the receiver jam indication is normally closed. The reset input accepts a contact closure or momentary low.
EchoStream communication operates at 902-928 MHz using frequency-hopping spread spectrum. Operating conditions are 32-140 degrees F and up to 90% RH, non-condensing. Weight is 18.4 oz (522 g).
Product Features
- Programs and supervises up to 32 single- or multiple-condition transmitters
- 11 Form C alarm relay outputs plus one Form C fault relay output
- Independent follower, latching, momentary or toggle output modes
- Two-line display with transmitter status, event log and signal strength
- Case tamper protection, jam detection and internal antennas
- 11-14 VDC power requirement; 500 mA
- Relay rating: 1 A at 28 VDC or 0.5 A at 30 VAC, resistive load
- 902-928 MHz EchoStream frequency-hopping spread spectrum
- 32-140 degrees F; up to 90% RH non-condensing
Product Literature
- Datasheet — Inovonics_EN4232MR_Datasheet
