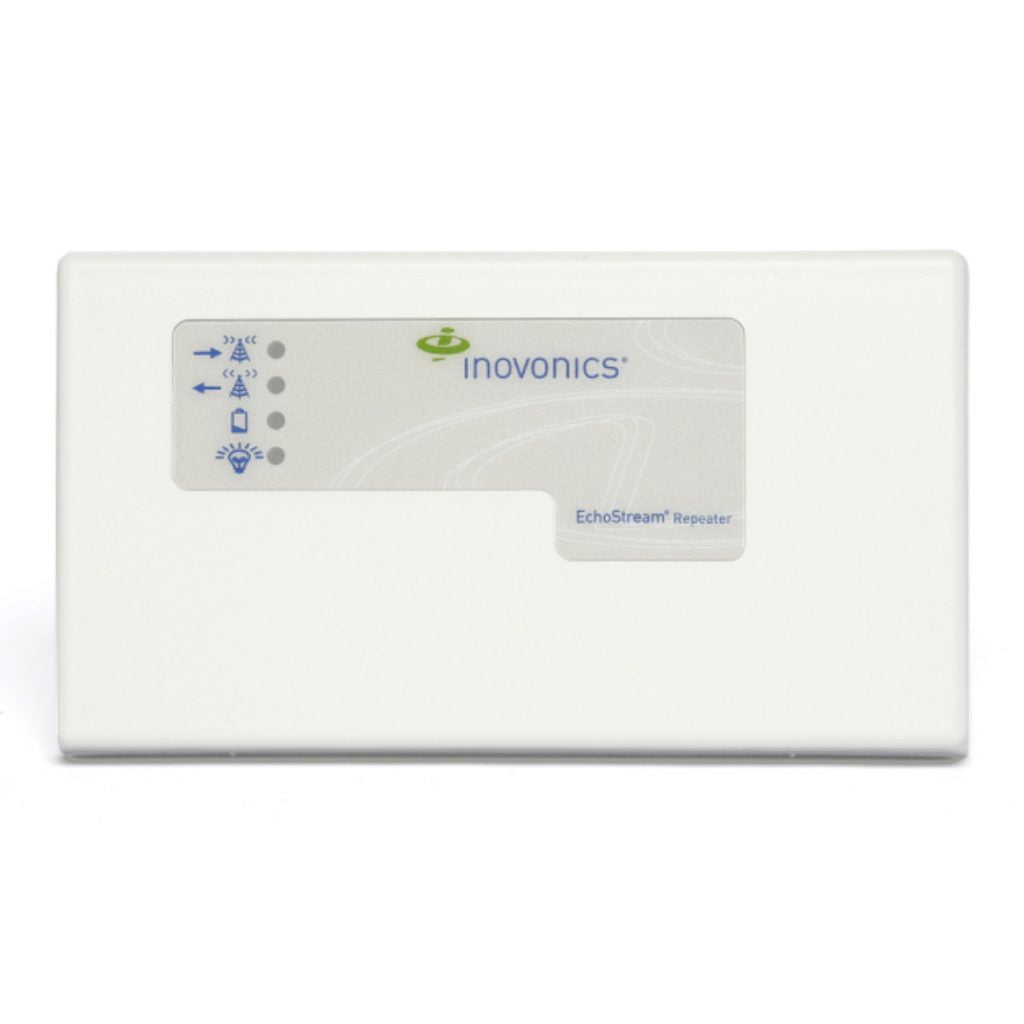

Inovonics EN5040-T High-Power Repeater with Transformer

Inovonics EN5040-T High-Power Repeater with Transformer

Regular price $448.28 USD
Regular price Sale price $448.28 USD
Sale
Shipping calculated at checkout.

The Inovonics EN5040-T is a high-power EchoStream wireless repeater that receives, decodes and retransmits signals to extend system coverage. A transformer and backup battery are included.

When supervised, this model sends a check-in message every 3 minutes. It provides AC power-loss and RF jam detection, case tamper protection and wall tamper detection. Wall tamper must be enabled during mounting.

Input power is 14 VAC, 60 Hz, 250 mA. Typical backup battery runtime is 24 hours and varies with repeater traffic and operating conditions. Replacement battery selection must match the installed hardware version.

The repeater defaults to broadcast messaging. Directed messaging requires configuration. North American EchoStream operation uses 902-928 MHz. Dimensions are 6.5 x 3.6 x 1.1 in, and weight is 7.14 oz.

For non-UL installations, operating temperature is -20 to 60 degrees C. For UL installations where applicable, the operating range is 0-60 degrees C. Battery charger operation is limited to 0-60 degrees C. Humidity is up to 90% RH, non-condensing. The unit is tested for indoor use; the ACC650 weatherproof enclosure is an accessory for outdoor installations.

Product Features

  • 3-minute check-in interval when supervised
  • Receives, decodes and retransmits EchoStream signals
  • Transformer and backup battery included
  • AC power-loss and RF jam detection
  • Case tamper; wall tamper requires mounting activation
  • 14 VAC, 60 Hz, 250 mA power requirement
  • Typical 24-hour backup runtime; actual runtime varies
  • 902-928 MHz North American EchoStream operation
  • 6.5 x 3.6 x 1.1 in; 7.14 oz
