SKU:AQ2W-AA2AAFD

Senva AQ2W-AA2AAFD TotalSense Wall IAQ Sensor, Analog, RH, OLED, 10K Type 3 Thermistor

Senva AQ2W-AA2AAFD TotalSense Wall IAQ Sensor, Analog, RH, OLED, 10K Type 3 Thermistor

Regular price $232.16 USD
Regular price Sale price $232.16 USD
Sale
Shipping calculated at checkout.

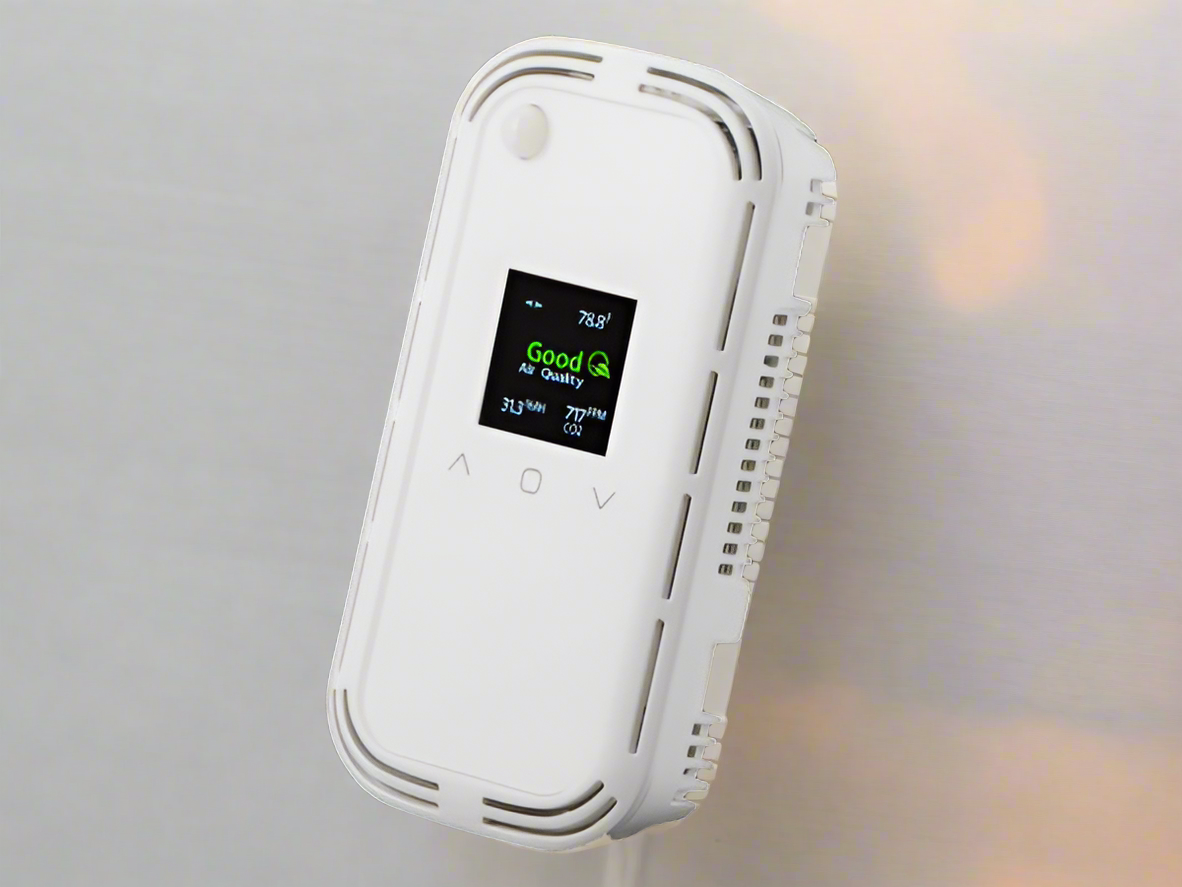

The Senva AQ2W-AA2AAFD is an AQ2W TotalSense wall-mount indoor air quality sensor with analog outputs and an OLED display. The selected RH sensor is specified for +/-2% RH over 0-80% RH. The selected temperature element is a 10K Type 3 thermistor. Its passive signal is not displayed on the OLED or read over BACnet/Modbus. The RH configuration has a separate temperature sensor readable on the display and, on communications versions, over BACnet/Modbus.

The analog version supports up to three outputs with selectable 0-5 V, 0-10 V, or 4-20 mA scales; available sources depend on the installed sensors. PM, TVOC, CO, ozone, and PIR options are not selected in this part number. Power supply is 16-30 VDC or 24 VAC.

Product Features

  • Wall-mount TotalSense IAQ sensor
  • Analog output version
  • OLED display
  • +/-2% RH accuracy over 0-80% RH
  • 10K Type 3 thermistor; passive temperature signal
  • Selectable 0-5 V, 0-10 V, or 4-20 mA analog scales
  • 16-30 VDC or 24 VAC supply
