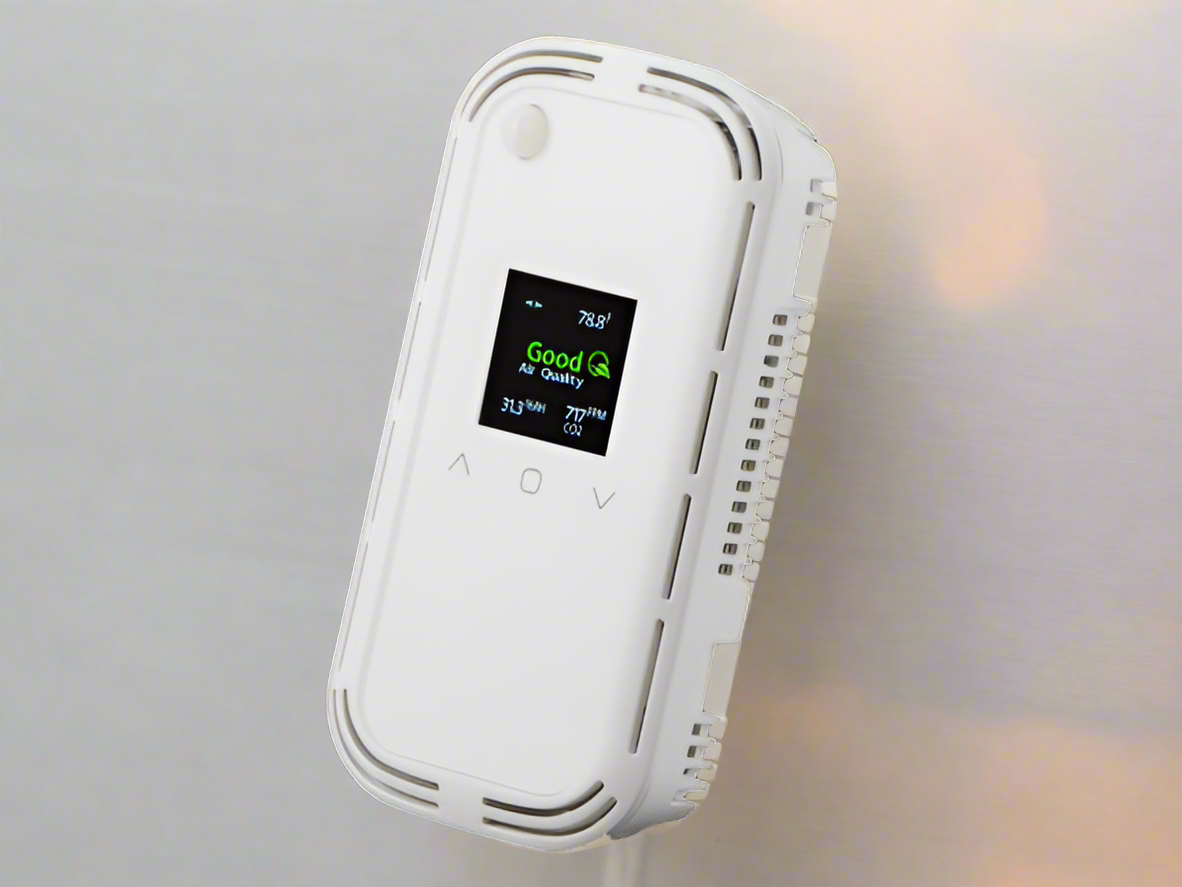

Senva AQ2W-AC2AAFDCO TotalSense Wall IAQ Sensor, Analog, CO2/RH, OLED, 10K Type 3 Thermistor, 1K Slider, Thermistor Override
Senva AQ2W-AC2AAFDCO TotalSense Wall IAQ Sensor, Analog, CO2/RH, OLED, 10K Type 3 Thermistor, 1K Slider, Thermistor Override
Couldn't load pickup availability
The Senva AQ2W-AC2AAFDCO is an AQ2W TotalSense wall-mount indoor air quality sensor with analog outputs and an OLED display. This configuration includes NDIR CO2 sensing and barometric pressure sensing. The selected RH sensor is specified for +/-2% RH over 0-80% RH. The selected temperature element is a 10K Type 3 thermistor. Its passive signal is not displayed on the OLED or read over BACnet/Modbus. The RH configuration has a separate temperature sensor readable on the display and, on communications versions, over BACnet/Modbus.
The analog version supports up to three outputs with selectable 0-5 V, 0-10 V, or 4-20 mA scales; available sources depend on the installed sensors. Accessory configuration: 1K ohm setpoint slider and thermistor-override pushbutton. PM, TVOC, CO, ozone, and PIR options are not selected in this part number. Power supply is 16-30 VDC or 24 VAC.
Product Features
- Wall-mount TotalSense IAQ sensor
- Analog output version
- OLED display
- NDIR CO2 sensor with barometric pressure sensing
- +/-2% RH accuracy over 0-80% RH
- 10K Type 3 thermistor; passive temperature signal
- Selectable 0-5 V, 0-10 V, or 4-20 mA analog scales
- 1K ohm setpoint slider and thermistor-override pushbutton
- 16-30 VDC or 24 VAC supply
Product Literature
- Datasheet — Senva_Model_AQ2W_Datasheet
