SKU:AQ2W-BC2AABDU

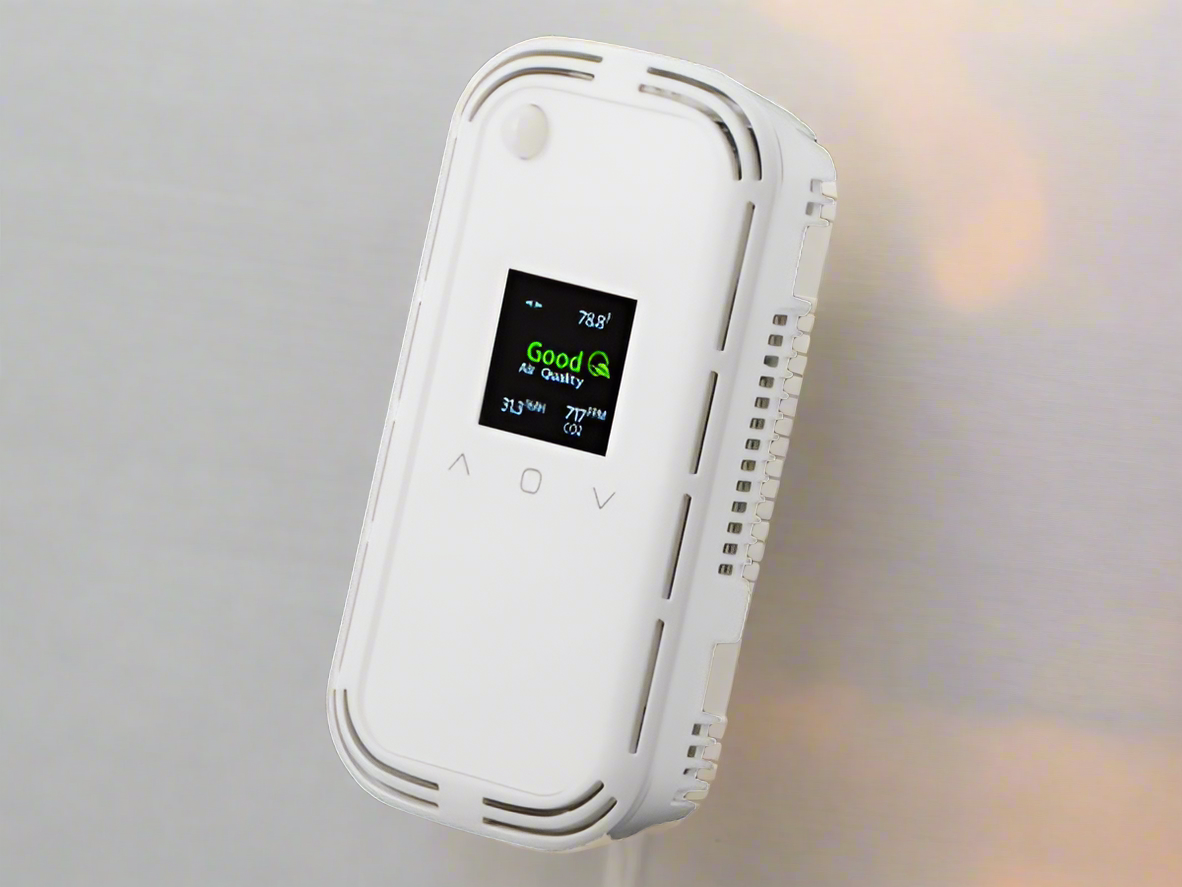

Senva AQ2W-BC2AABDU TotalSense Wall IAQ Sensor, BACnet/Modbus, CO2/RH/Temperature, OLED, Pushbutton

Senva AQ2W-BC2AABDU TotalSense Wall IAQ Sensor, BACnet/Modbus, CO2/RH/Temperature, OLED, Pushbutton

Regular price $409.29 USD
Regular price Sale price $409.29 USD
Sale
Shipping calculated at checkout.

The Senva AQ2W-BC2AABDU is an AQ2W TotalSense wall-mount indoor air quality sensor with BACnet MS/TP or Modbus RTU communications and an OLED display. This configuration includes NDIR CO2 sensing and barometric pressure sensing. The selected RH sensor is specified for +/-2% RH over 0-80% RH. A temperature transmitter is selected.

This B-output configuration uses RS-485 communications; it is not the separate D-output dual analog-and-communications version. Ambient-light detection is included with this BACnet/Modbus and OLED combination. Accessory configuration: Standalone pushbutton terminals. PM, TVOC, CO, ozone, and PIR options are not selected in this part number. Power supply is 16-30 VDC or 24 VAC.

Product Features

  • Wall-mount TotalSense IAQ sensor
  • BACnet MS/TP or Modbus RTU over RS-485
  • OLED display
  • NDIR CO2 sensor with barometric pressure sensing
  • +/-2% RH accuracy over 0-80% RH
  • Temperature transmitter
  • Ambient-light detection with communications/OLED combination
  • Standalone pushbutton terminals
  • 16-30 VDC or 24 VAC supply
