SKU:AQ2W-BCAAAAD
Senva AQ2W-BCAAAAD TotalSense Wall IAQ Sensor, BACnet/Modbus, CO2, OLED
Senva AQ2W-BCAAAAD TotalSense Wall IAQ Sensor, BACnet/Modbus, CO2, OLED
Regular price
$335.35 USD
Regular price
Sale price
$335.35 USD
Shipping calculated at checkout.
Couldn't load pickup availability

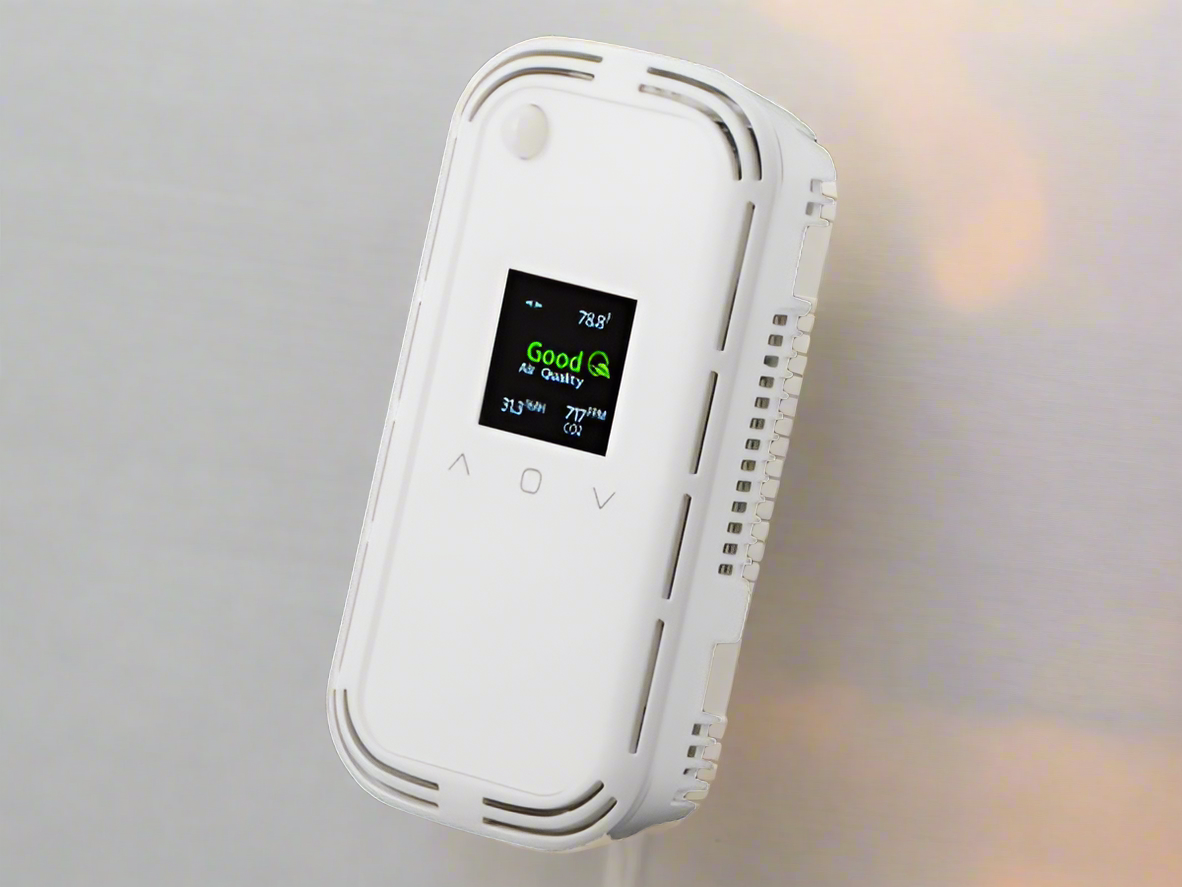

The Senva AQ2W-BCAAAAD is an AQ2W TotalSense wall-mount indoor air quality sensor with BACnet MS/TP or Modbus RTU communications and an OLED display. This configuration includes NDIR CO2 sensing and barometric pressure sensing. No optional temperature output is selected.
This B-output configuration uses RS-485 communications; it is not the separate D-output dual analog-and-communications version. Ambient-light detection is included with this BACnet/Modbus and OLED combination. PM, TVOC, CO, ozone, and PIR options are not selected in this part number. Power supply is 16-30 VDC or 24 VAC.
Product Features
- Wall-mount TotalSense IAQ sensor
- BACnet MS/TP or Modbus RTU over RS-485
- OLED display
- NDIR CO2 sensor with barometric pressure sensing
- Ambient-light detection with communications/OLED combination
- 16-30 VDC or 24 VAC supply
Product Literature
- Datasheet — Senva_Model_AQ2W_Datasheet
