SKU:CT1R-B3D

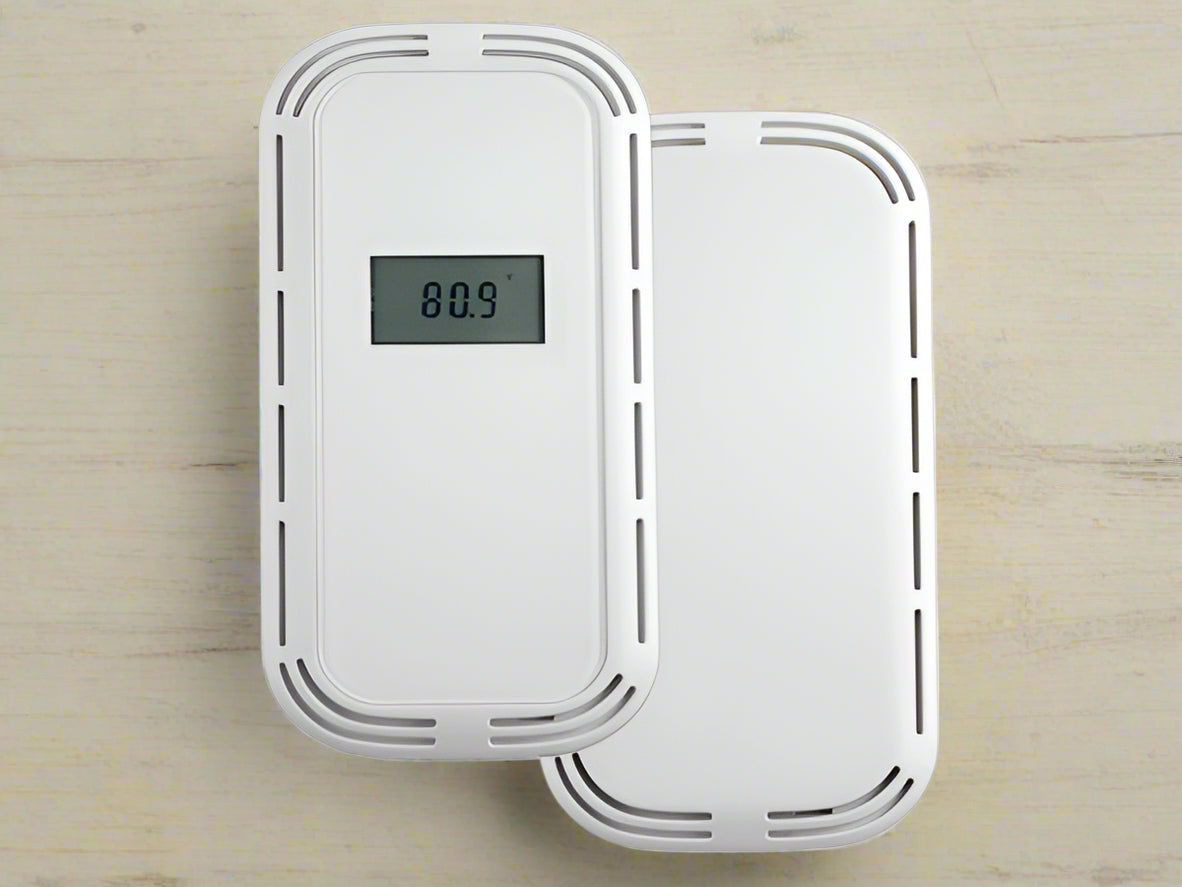

Senva CT1R-B3D Recessed Wall CO2 Sensor, LCD, Temperature transmitter

Senva CT1R-B3D Recessed Wall CO2 Sensor, LCD, Temperature transmitter

Regular price $253.26 USD
Regular price Sale price $253.26 USD
Sale
Shipping calculated at checkout.

The Senva CT1R-B3D is a CT1R recessed-wall CO2 sensor with a standard NDIR sensing element and an LCD display. A temperature transmitter is included. This option displays temperature on the LCD.

The 3-wire analog output supports 4-20 mA, 0-5 V, or 0-10 V. Default CO2 scaling is 0-2000 ppm. The LCD setup menu supports 0-2000, 0-5000, or 0-10000 ppm scaling. This display version includes a programmable normally open solid-state setpoint relay rated 1 A at 30 VAC/DC.

For the standard CO2 element, specified accuracy is +/- (30 ppm + 3% of reading) at 400-2000 ppm and +/- (50 ppm + 5% of reading) at 2000-5000 ppm, at -10 to 50 degrees C. Accuracy at 5000-10000 ppm is +/- (100 ppm + 10% of reading) at 0-50 degrees C. Supply requirements are 12-30 VDC, 50 mA maximum, or 24 VAC, 100 mA maximum. The 0-10 V output requires 15-30 VDC or 24 VAC. The enclosure is rated IP20/NEMA 1, with an overall operating range of -10 to 50 degrees C and 0-95% RH non-condensing.

Product Features

  • Recessed Wall mounting
  • Standard NDIR CO2 element
  • LCD display with setup menu
  • Temperature transmitter
  • Programmable N.O. relay: 1 A at 30 VAC/DC
  • 3-wire 4-20 mA, 0-5 V, or 0-10 V analog output
  • 0-2000 ppm default CO2 scaling
  • 0-10 V output requires 15-30 VDC or 24 VAC
  • IP20/NEMA 1 enclosure
  • Temperature transmitter supports LCD temperature display
