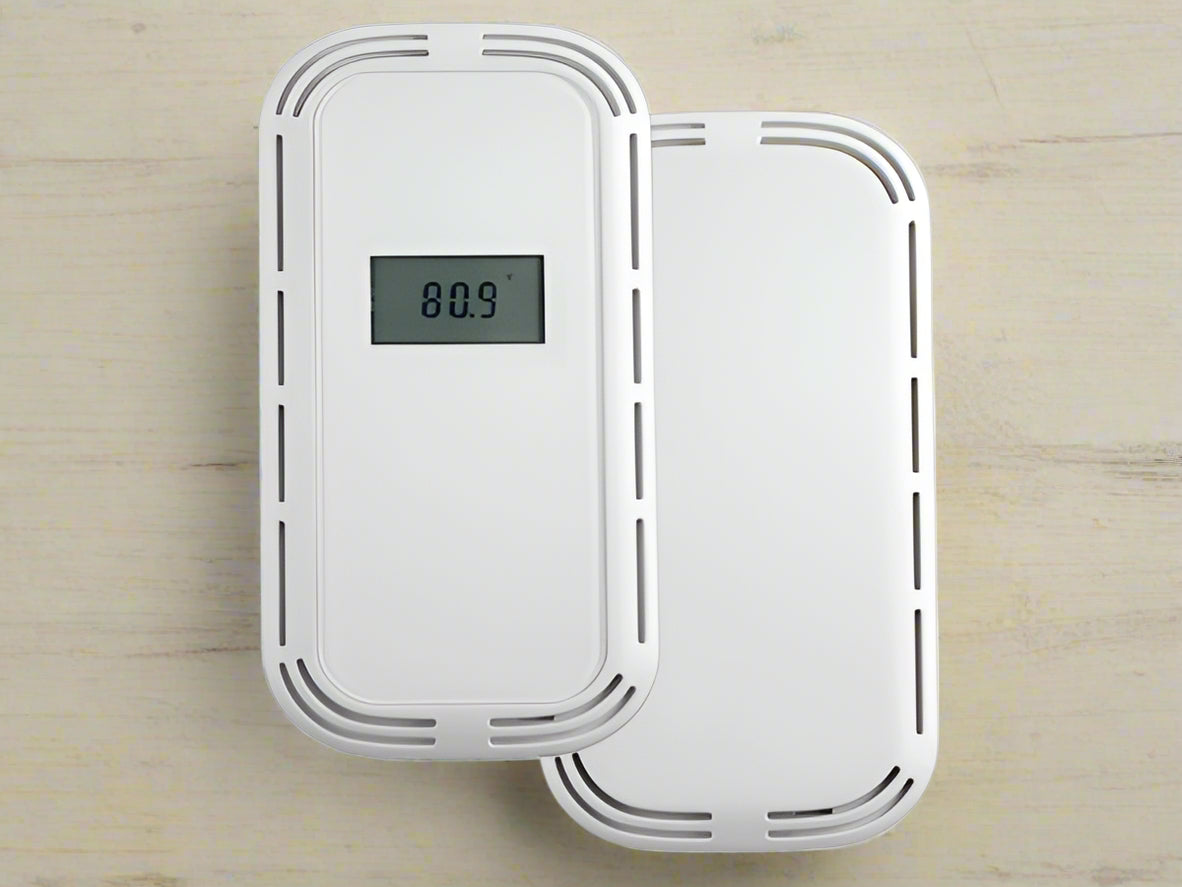

Senva CT1R-K3D Recessed Wall CO2 Sensor, LCD, 20K ohm thermistor
Senva CT1R-K3D Recessed Wall CO2 Sensor, LCD, 20K ohm thermistor
Couldn't load pickup availability
The Senva CT1R-K3D is a CT1R recessed-wall CO2 sensor with a standard NDIR sensing element and an LCD display. This configuration includes a 20K ohm thermistor. The passive temperature option does not display temperature on the LCD.
The 3-wire analog output supports 4-20 mA, 0-5 V, or 0-10 V. Default CO2 scaling is 0-2000 ppm. The LCD setup menu supports 0-2000, 0-5000, or 0-10000 ppm scaling. This display version includes a programmable normally open solid-state setpoint relay rated 1 A at 30 VAC/DC.
For the standard CO2 element, specified accuracy is +/- (30 ppm + 3% of reading) at 400-2000 ppm and +/- (50 ppm + 5% of reading) at 2000-5000 ppm, at -10 to 50 degrees C. Accuracy at 5000-10000 ppm is +/- (100 ppm + 10% of reading) at 0-50 degrees C. Supply requirements are 12-30 VDC, 50 mA maximum, or 24 VAC, 100 mA maximum. The 0-10 V output requires 15-30 VDC or 24 VAC. The enclosure is rated IP20/NEMA 1, with an overall operating range of -10 to 50 degrees C and 0-95% RH non-condensing.
Product Features
- Recessed Wall mounting
- Standard NDIR CO2 element
- LCD display with setup menu
- 20K ohm thermistor
- Programmable N.O. relay: 1 A at 30 VAC/DC
- 3-wire 4-20 mA, 0-5 V, or 0-10 V analog output
- 0-2000 ppm default CO2 scaling
- 0-10 V output requires 15-30 VDC or 24 VAC
- IP20/NEMA 1 enclosure
- Passive temperature element does not display on LCD
Product Literature
- Datasheet — Senva_CT1R_CT1W_Series_Datasheet
