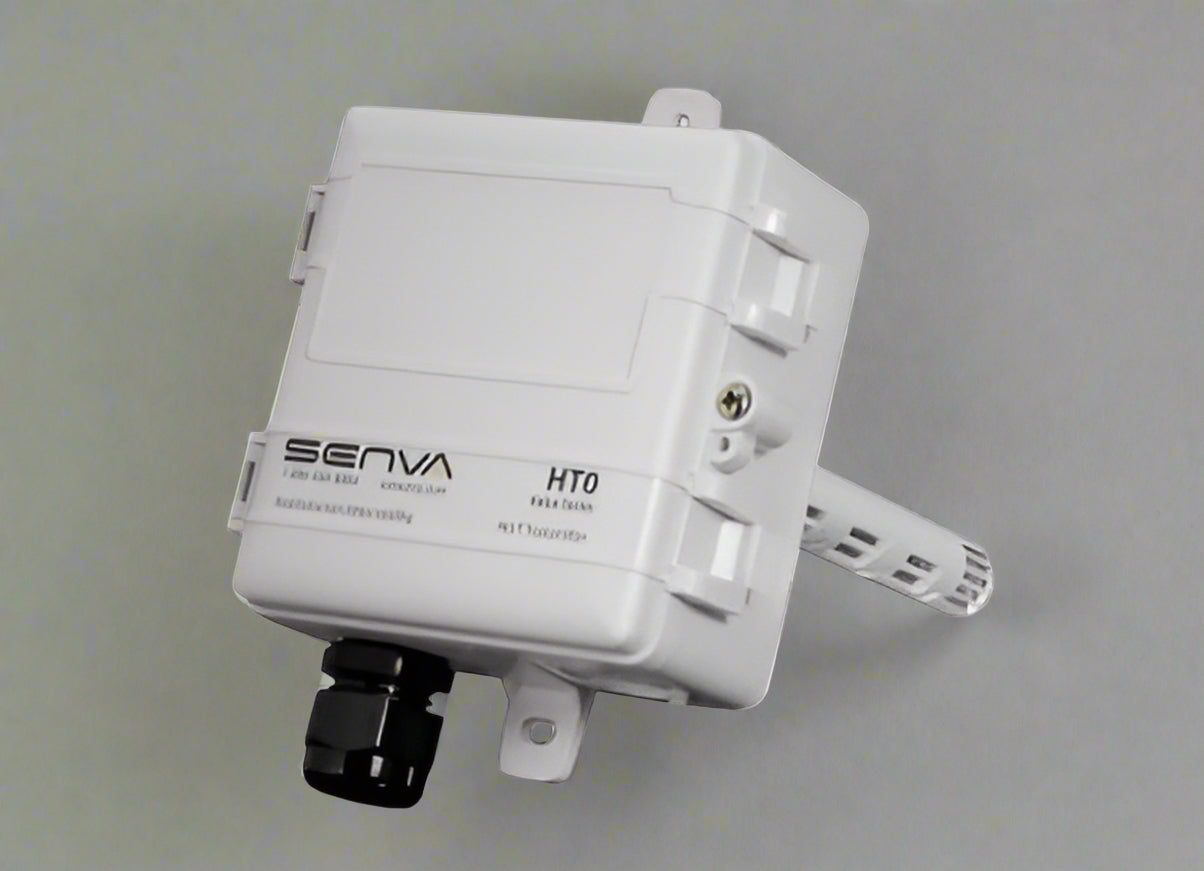

Senva HT0D-2CA Duct RH Sensor, 2% RH, 4-20 mA, 2-wire
Senva HT0D-2CA Duct RH Sensor, 2% RH, 4-20 mA, 2-wire
Couldn't load pickup availability
The Senva HT0D-2CA is an HT0D duct-mount humidity sensor with +/-2% RH maximum specified accuracy over 0-100% RH and a 4-20 mA, 2-wire RH output. No optional temperature output is selected. The output type and wiring are specific to this ordering code; this is not a universal-output model.
RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The vortex probe circulates airflow for duct sensing.
The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings.
Product Features
- Duct-mount RH sensor
- +/-2% RH maximum specified accuracy over 0-100% RH
- 4-20 mA, 2-wire RH output
- No optional temperature output
- 0-100% RH output scaling; non-condensing
- On-board temperature compensation for RH
- Vortex probe for airflow circulation
- IP20/NEMA 1 enclosure
- PTFE media filter with IP54 protection
Product Literature
- Datasheet — Senva_HT0D_Series_Datasheet
