SKU:HT0D-3BK

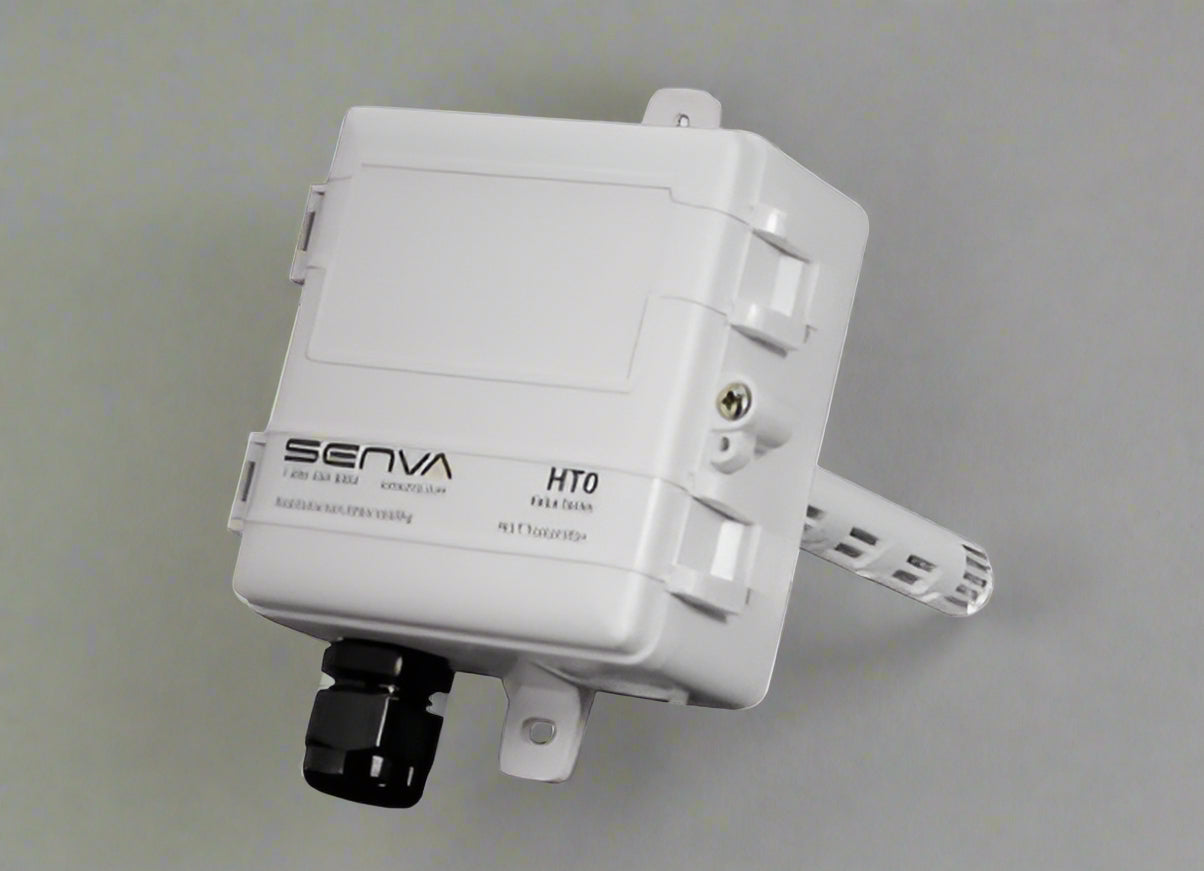

Senva HT0D-3BK Duct RH Sensor, 3% RH, 0-10 V, 3-wire, 20K ohm thermistor
Senva HT0D-3BK Duct RH Sensor, 3% RH, 0-10 V, 3-wire, 20K ohm thermistor
Couldn't load pickup availability
The Senva HT0D-3BK is an HT0D duct-mount humidity sensor with +/-3% RH maximum specified accuracy over 0-100% RH and a 0-10 V, 3-wire RH output. This configuration includes a 20K ohm thermistor as a separate passive temperature option, not a temperature transmitter. The output type and wiring are specific to this ordering code; this is not a universal-output model.
RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The vortex probe circulates airflow for duct sensing.
The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings. The 0-10 V output requires 15-30 VDC or 24 VAC.
Product Features
- Duct-mount RH sensor
- +/-3% RH maximum specified accuracy over 0-100% RH
- 0-10 V, 3-wire RH output
- 20K ohm thermistor
- 0-100% RH output scaling; non-condensing
- On-board temperature compensation for RH
- Vortex probe for airflow circulation
- IP20/NEMA 1 enclosure
- PTFE media filter with IP54 protection
- 0-10 V output requires 15-30 VDC or 24 VAC
Product Literature
- Datasheet — Senva_HT0D_Series_Datasheet
