Senva HT0D-3DE Duct RH Sensor, 3% RH, 4-20 mA, 3-wire, 10K ohm Type 2 thermistor

Senva HT0D-3DE Duct RH Sensor, 3% RH, 4-20 mA, 3-wire, 10K ohm Type 2 thermistor

Regular price $150.73 USD
Regular price Sale price $150.73 USD
Sale
Shipping calculated at checkout.

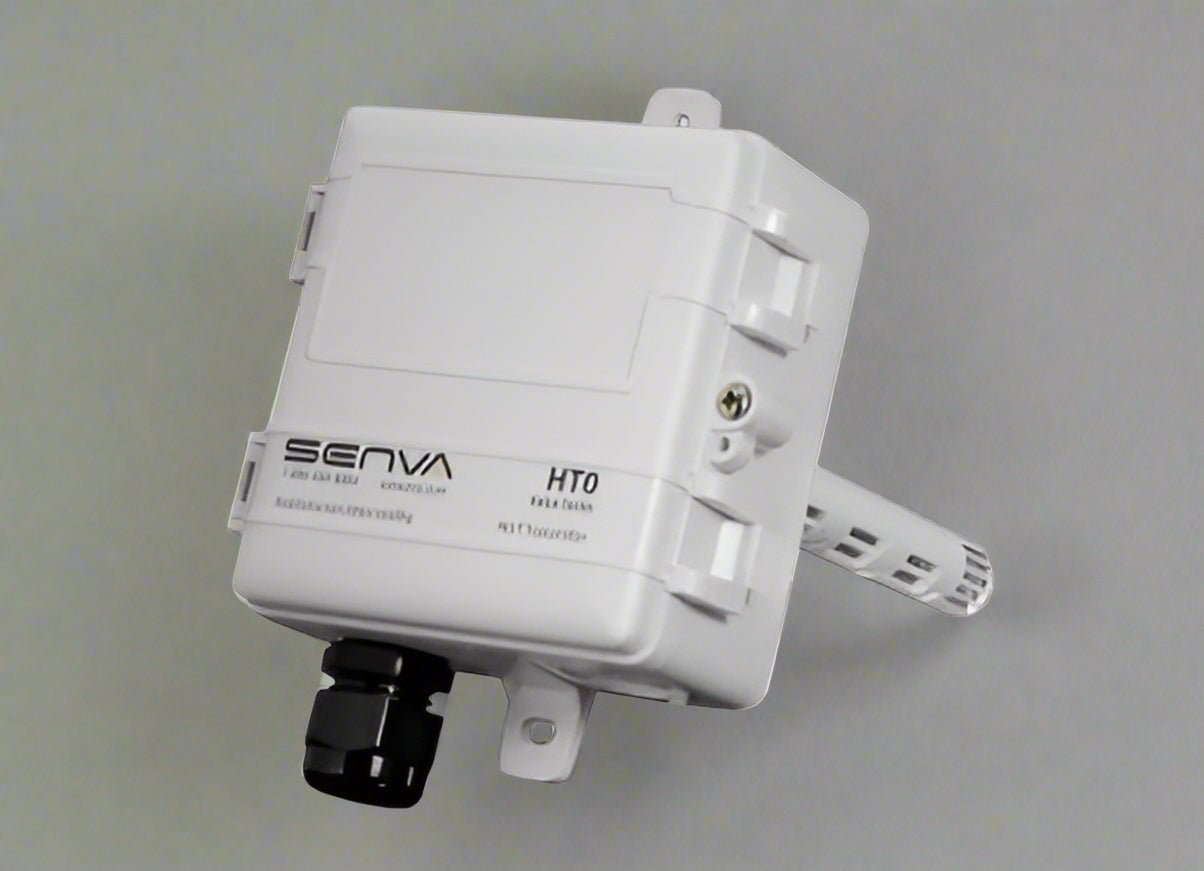

The Senva HT0D-3DE is an HT0D duct-mount humidity sensor with +/-3% RH maximum specified accuracy over 0-100% RH and a 4-20 mA, 3-wire RH output. This configuration includes a 10K ohm Type 2 thermistor as a separate passive temperature option, not a temperature transmitter. The output type and wiring are specific to this ordering code; this is not a universal-output model.

RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The vortex probe circulates airflow for duct sensing.

The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings.

Product Features

  • Duct-mount RH sensor
  • +/-3% RH maximum specified accuracy over 0-100% RH
  • 4-20 mA, 3-wire RH output
  • 10K ohm Type 2 thermistor
  • 0-100% RH output scaling; non-condensing
  • On-board temperature compensation for RH
  • Vortex probe for airflow circulation
  • IP20/NEMA 1 enclosure
  • PTFE media filter with IP54 protection
