SKU:HT0R-2DD

Senva HT0R-2DD Recessed Wall RH Sensor, 2% RH, 4-20 mA, 3-wire, 1000 ohm platinum RTD

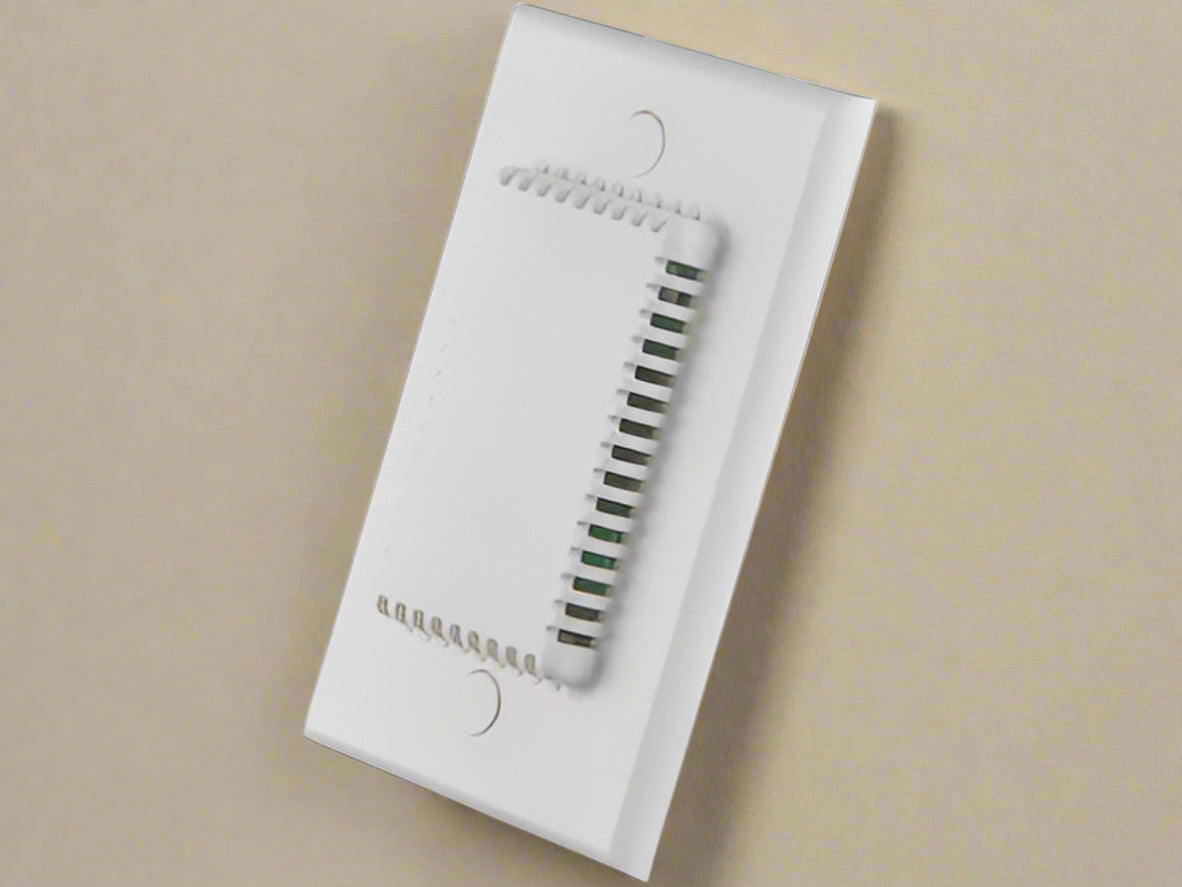

Senva HT0R-2DD Recessed Wall RH Sensor, 2% RH, 4-20 mA, 3-wire, 1000 ohm platinum RTD

Regular price $114.40 USD
Regular price Sale price $114.40 USD
Sale
Shipping calculated at checkout.

The Senva HT0R-2DD is an HT0R recessed-wall humidity sensor with +/-2% RH maximum specified accuracy over 0-100% RH and a 4-20 mA, 3-wire RH output. This configuration includes a 1000 ohm platinum RTD as a separate passive temperature option, not a temperature transmitter. The output type and wiring are specific to this ordering code; this is not a universal-output model.

RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The slim, tamper-resistant housing has no exposed screws, fits standard single-gang boxes, and includes a gasket to seal the sensing element against wall drafts.

The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings.

Product Features

  • Recessed-wall room RH sensor
  • +/-2% RH maximum specified accuracy over 0-100% RH
  • 4-20 mA, 3-wire RH output
  • 1000 ohm platinum RTD
  • 0-100% RH output scaling; non-condensing
  • On-board temperature compensation for RH
  • Tamper-resistant housing without exposed screws
  • Gasket helps seal sensing element against wall drafts
  • IP20/NEMA 1 enclosure
  • PTFE media filter with IP54 protection
