SKU:HT0R-3BF

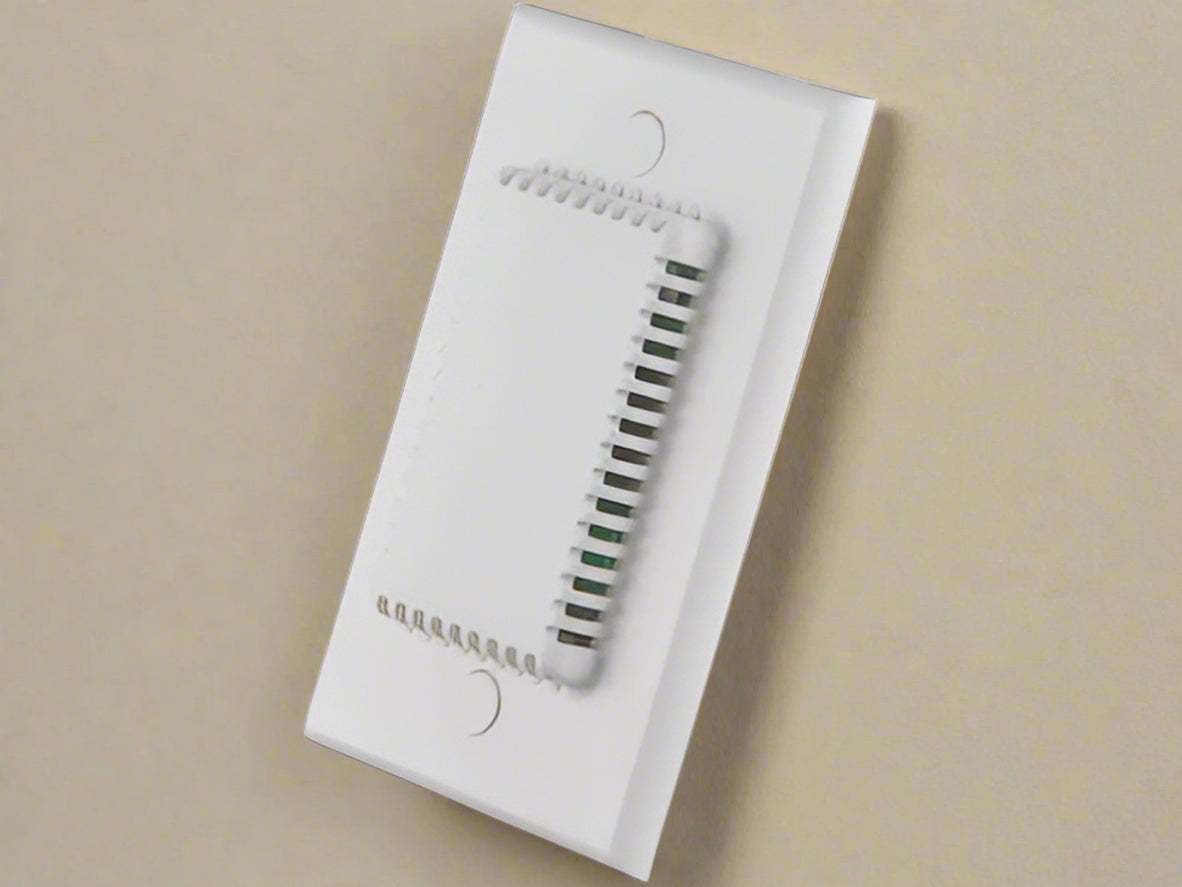

Senva HT0R-3BF Recessed Wall RH Sensor, 3% RH, 0-10 V, 3-wire, 10K ohm Type 3 thermistor

Senva HT0R-3BF Recessed Wall RH Sensor, 3% RH, 0-10 V, 3-wire, 10K ohm Type 3 thermistor

Regular price $99.89 USD
Regular price Sale price $99.89 USD
Sale
Shipping calculated at checkout.

The Senva HT0R-3BF is an HT0R recessed-wall humidity sensor with +/-3% RH maximum specified accuracy over 0-100% RH and a 0-10 V, 3-wire RH output. This configuration includes a 10K ohm Type 3 thermistor as a separate passive temperature option, not a temperature transmitter. The output type and wiring are specific to this ordering code; this is not a universal-output model.

RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The slim, tamper-resistant housing has no exposed screws, fits standard single-gang boxes, and includes a gasket to seal the sensing element against wall drafts.

The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings. The 0-10 V output requires 15-30 VDC or 24 VAC.

Product Features

  • Recessed-wall room RH sensor
  • +/-3% RH maximum specified accuracy over 0-100% RH
  • 0-10 V, 3-wire RH output
  • 10K ohm Type 3 thermistor
  • 0-100% RH output scaling; non-condensing
  • On-board temperature compensation for RH
  • Tamper-resistant housing without exposed screws
  • Gasket helps seal sensing element against wall drafts
  • IP20/NEMA 1 enclosure
  • PTFE media filter with IP54 protection
  • 0-10 V output requires 15-30 VDC or 24 VAC
