SKU:HT0R-3CF

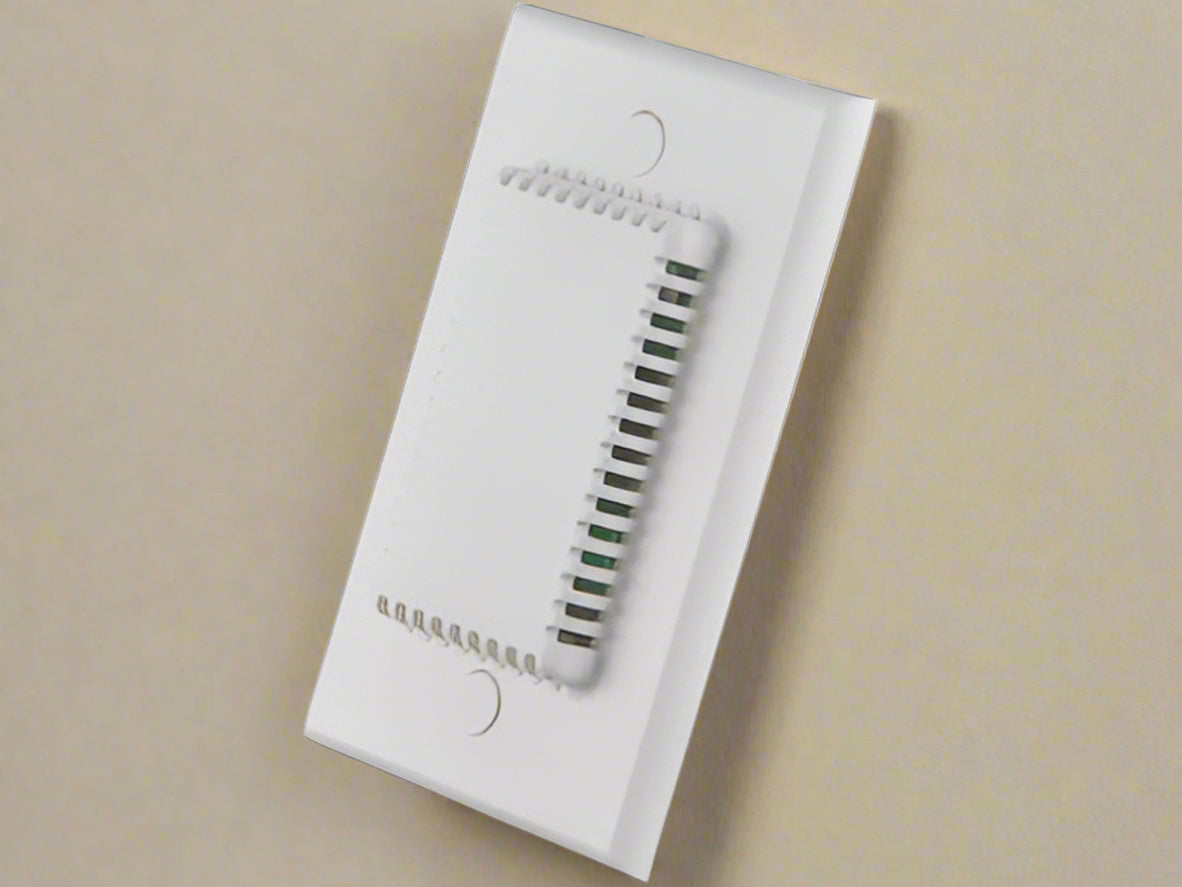

Senva HT0R-3CF Recessed Wall RH Sensor, 3% RH, 4-20 mA, 2-wire, 10K ohm Type 3 thermistor
Senva HT0R-3CF Recessed Wall RH Sensor, 3% RH, 4-20 mA, 2-wire, 10K ohm Type 3 thermistor
Couldn't load pickup availability
The Senva HT0R-3CF is an HT0R recessed-wall humidity sensor with +/-3% RH maximum specified accuracy over 0-100% RH and a 4-20 mA, 2-wire RH output. This configuration includes a 10K ohm Type 3 thermistor as a separate passive temperature option, not a temperature transmitter. The output type and wiring are specific to this ordering code; this is not a universal-output model.
RH output scaling is 0-100% RH, non-condensing. On-board temperature compensation supports RH measurement but does not add a temperature-transmitter output. The slim, tamper-resistant housing has no exposed screws, fits standard single-gang boxes, and includes a gasket to seal the sensing element against wall drafts.
The enclosure is rated IP20/NEMA 1. The PTFE media filter has IP54 protection; that is not the enclosure rating. Normal RH operating conditions are 5-60 degrees C at 20-80% RH. Prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings.
Product Features
- Recessed-wall room RH sensor
- +/-3% RH maximum specified accuracy over 0-100% RH
- 4-20 mA, 2-wire RH output
- 10K ohm Type 3 thermistor
- 0-100% RH output scaling; non-condensing
- On-board temperature compensation for RH
- Tamper-resistant housing without exposed screws
- Gasket helps seal sensing element against wall drafts
- IP20/NEMA 1 enclosure
- PTFE media filter with IP54 protection
Product Literature
- Datasheet — Senva_HT0R_Series_Datasheet
