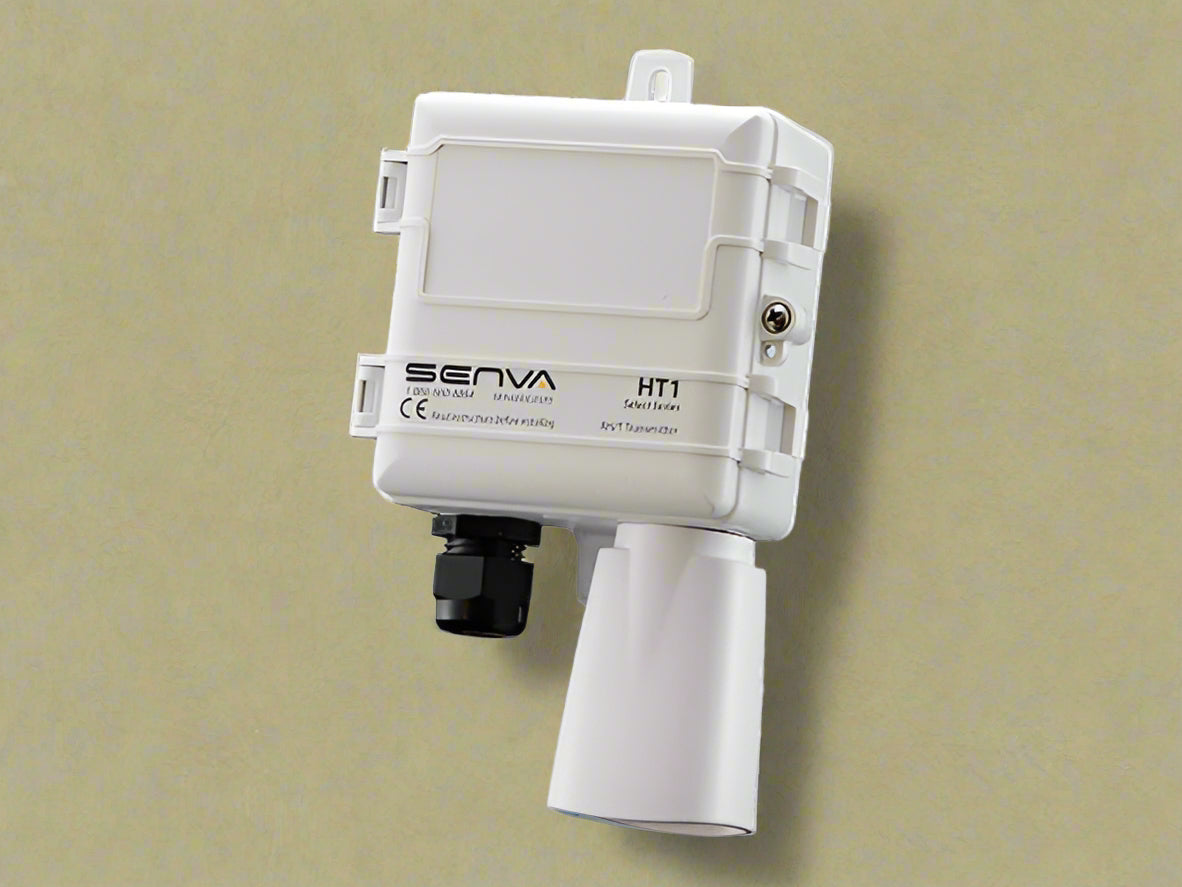

Senva HT1O-2BUX Outdoor RH Sensor, 2% RH, No LCD, Temperature transmitter
Senva HT1O-2BUX Outdoor RH Sensor, 2% RH, No LCD, Temperature transmitter
Couldn't load pickup availability
The Senva HT1O-2BUX is an HT1O outdoor humidity sensor with +/-2% RH specified accuracy over 0-100% RH and no LCD display. This configuration includes a temperature transmitter with selectable 0-50 degrees C or -40 to 60 degrees C output scaling. Output scaling is not an overall operating-temperature rating.
The U universal output supports selectable 0-5 V, 0-10 V, or 4-20 mA, with 2-wire and 3-wire modes as specified in the installation instructions. RH output scaling is 0-100% RH, non-condensing. The 0-10 V output requires 15-30 VDC or 24 VAC. Voltage-mode supply is 12-30 VDC or 24 VAC, 15 mA maximum; 2-wire current mode uses 12-30 VDC, 30 mA maximum.
On-board temperature compensation supports RH measurement. The RH element normal operating conditions are 5-60 degrees C at 20-80% RH; prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings. No NIST calibration option is selected in this part number. The outdoor design includes a gasketed lid, sintered stainless-steel media filter, and field-replaceable sensing element.
Product Features
- Outdoor RH sensor
- +/-2% RH specified accuracy over 0-100% RH
- No LCD display
- Temperature transmitter
- U universal output: 0-5 V, 0-10 V, or 4-20 mA
- 0-100% RH output scaling; non-condensing
- On-board temperature compensation for RH
- 10 V output requires 15-30 VDC or 24 VAC
- Sintered stainless-steel media filter
Product Literature
- Datasheet — Senva_HT1O_Series_Datasheet
