SKU:HT1R-2BUD

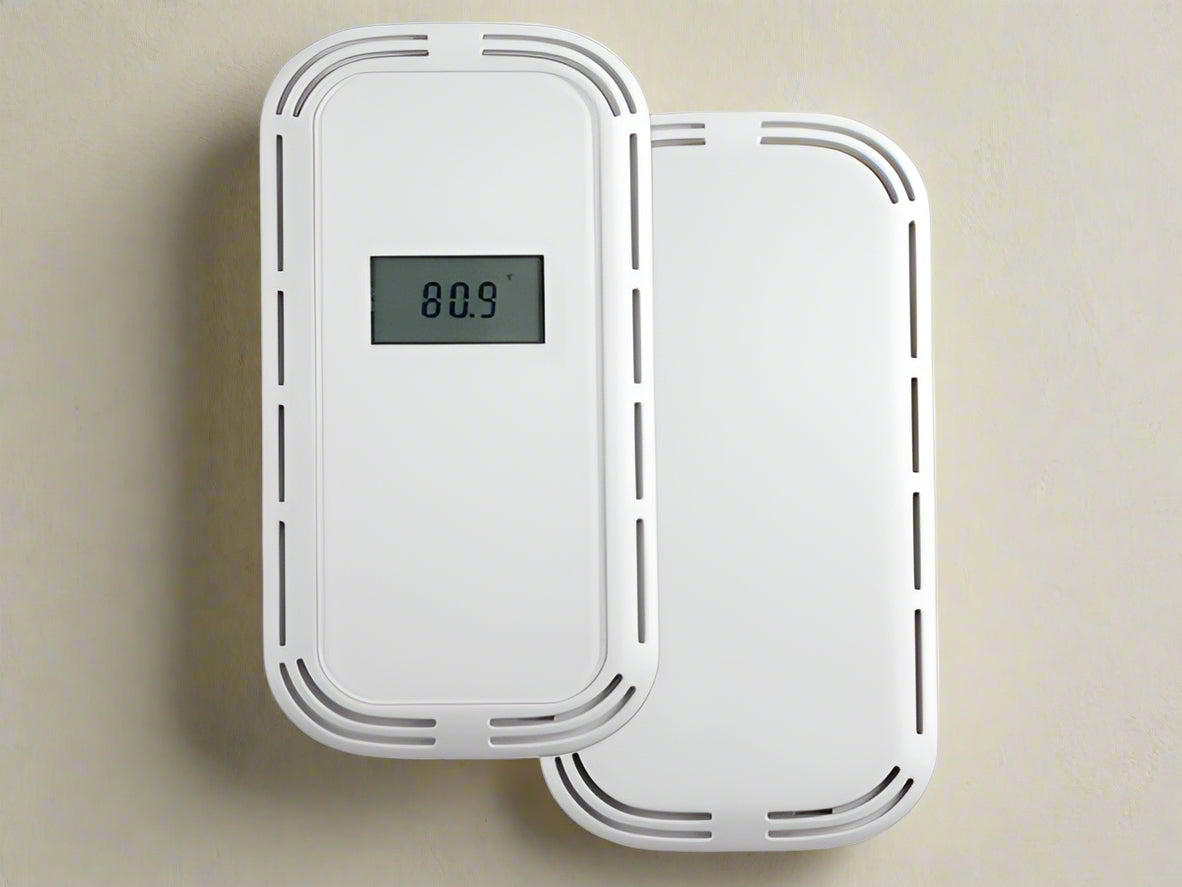

Senva HT1R-2BUD Recessed Wall RH Sensor, 2% RH, LCD, Temperature transmitter

Senva HT1R-2BUD Recessed Wall RH Sensor, 2% RH, LCD, Temperature transmitter

Regular price $183.32 USD
Regular price Sale price $183.32 USD
Sale
Shipping calculated at checkout.

The Senva HT1R-2BUD is an HT1R recessed-wall humidity sensor with +/-2% RH specified accuracy over 0-100% RH and an LCD display. This configuration includes a temperature transmitter with selectable 10-35 degrees C or 0-50 degrees C output scaling. Output scaling is not an overall operating-temperature rating.

The U universal output supports selectable 0-5 V, 0-10 V, or 4-20 mA, with 2-wire and 3-wire modes as specified in the installation instructions. RH output scaling is 0-100% RH, non-condensing. The 0-10 V output requires 15-30 VDC or 24 VAC. The datasheet lists a 12-30 VDC or 24 VAC supply, 100 mA maximum.

On-board temperature compensation supports RH measurement. The RH element normal operating conditions are 5-60 degrees C at 20-80% RH; prolonged exposure to high humidity outside normal conditions may temporarily offset RH readings. No NIST calibration option is selected in this part number. The recessed housing provides a low-profile installation without exposed screws. The PTFE media filter has IP54 protection; this is not a whole-enclosure IP54 rating.

Product Features

  • Recessed Wall RH sensor
  • +/-2% RH specified accuracy over 0-100% RH
  • LCD display
  • Temperature transmitter
  • U universal output: 0-5 V, 0-10 V, or 4-20 mA
  • 0-100% RH output scaling; non-condensing
  • On-board temperature compensation for RH
  • 10 V output requires 15-30 VDC or 24 VAC
  • Low-profile recessed housing
