SKU:231GMS23VD

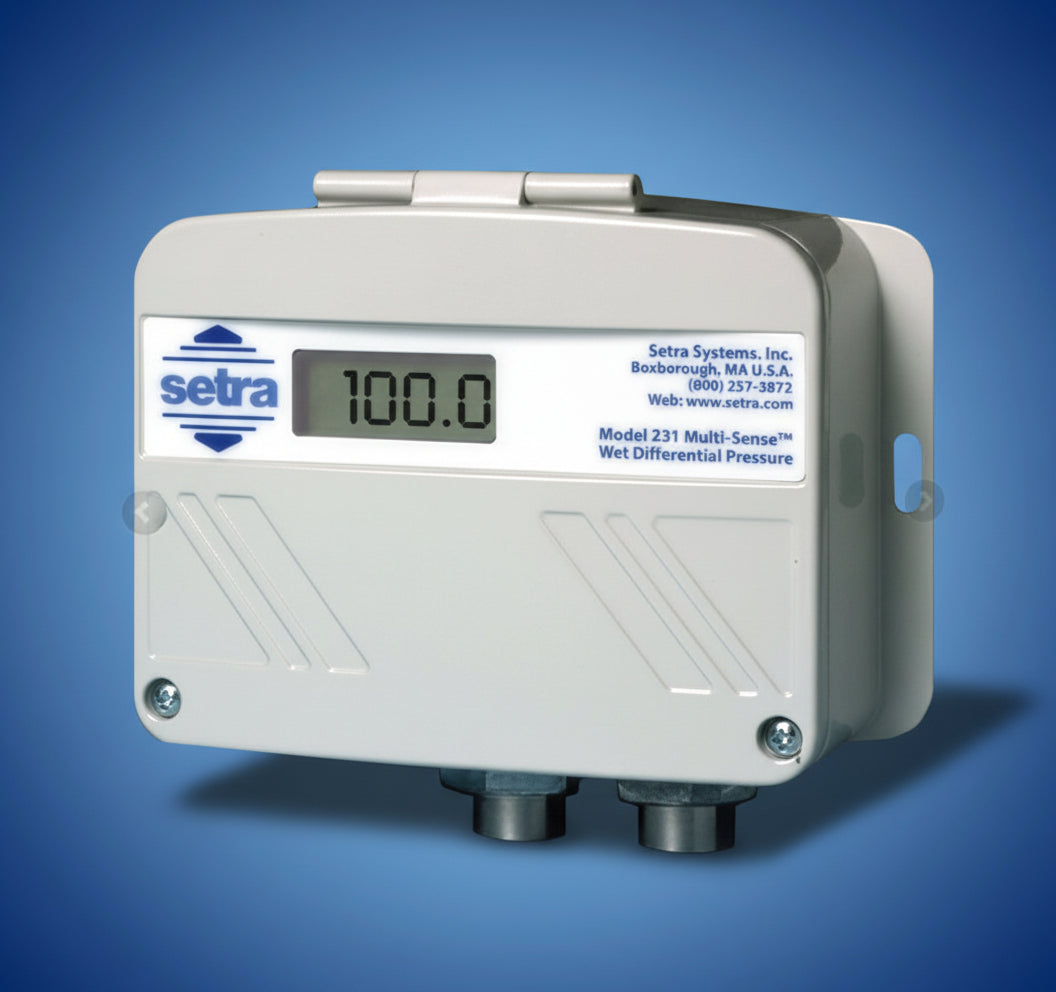

Setra 231GMS23VD Multi-Sense Wet-to-Wet Differential Pressure Transducer, MS2 10/20/50/100 PSID, 3-Valve Manifold, LCD
Setra 231GMS23VD Multi-Sense Wet-to-Wet Differential Pressure Transducer, MS2 10/20/50/100 PSID, 3-Valve Manifold, LCD
Regular price
$960.55 USD
Regular price
Sale price
$960.55 USD
Shipping calculated at checkout.
Couldn't load pickup availability
The Setra 231GMS23VD is a Model 231 Multi-Sense wet-to-wet differential pressure transducer with field-selectable MS2 ranges of 10, 20, 50, 100 PSID. This configuration includes 3-valve manifold assembly and an LCD display.
The Model 231 uses dual sensors and provides field-accessible ranging, a choice of output, and field zeroing. Push-button zero, remote zero, and a jumper-selectable port-swap feature support setup and adjustment. Applications include energy management, process control, pressure-drop monitoring across filters, and flow measurement of gases or liquids.
Product Features
- Field-selectable MS2 pressure ranges: 10, 20, 50, 100 PSID
- 3-valve manifold assembly
- LCD display included
- Dual-sensor wet-to-wet differential pressure design
- Field-accessible push-button zero and remote zero
- Jumper-selectable port swap
Product Literature
- Datasheet — Setra_Model_231_Datasheet
